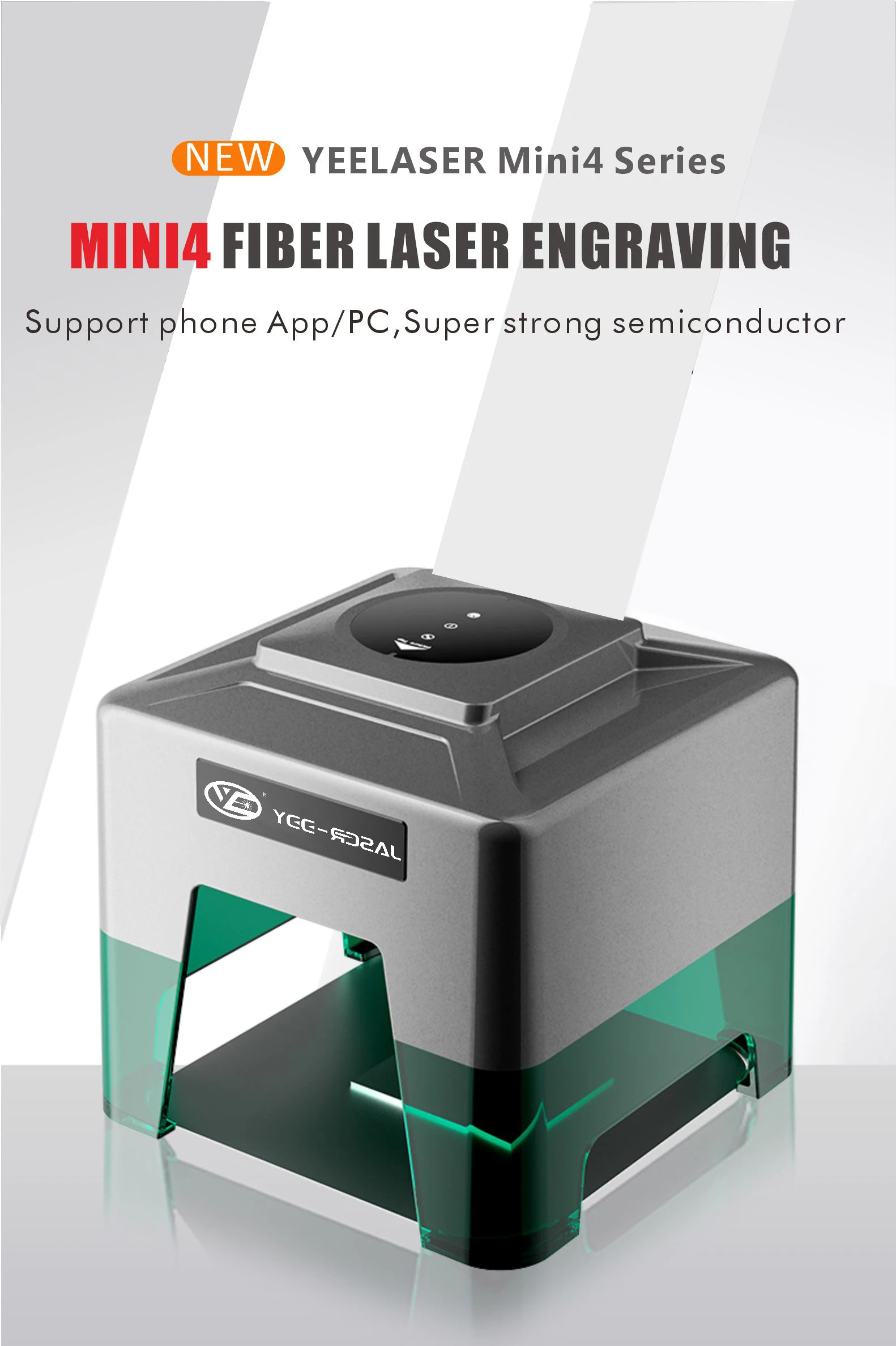

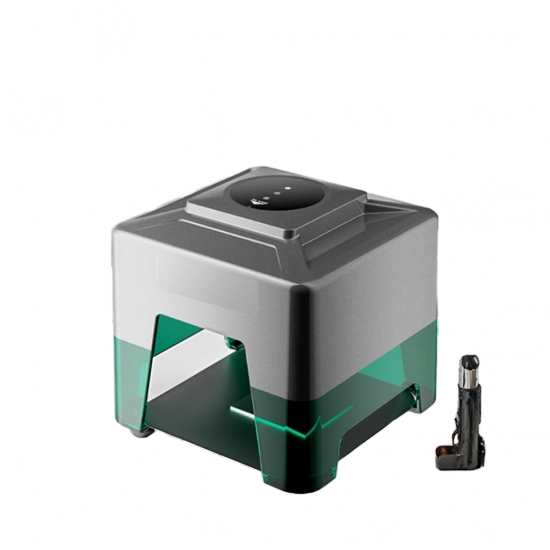

Yeelaser Mini DIY 5W Diode Laser Marking Machine for Wooden Keychains, Blank Leather Pendants, and Promotional Gift Engraving

Yeelaser Mini DIY 5W Diode Laser Marking Machine for Wooden Keychains, Blank Leather Pendants, and Promotional Gift Engraving

Description

Key attributes

applicable material

Wood, Leather, Stone, Ceramic, Cardboard, Cloth, Coated metal, Metal

laser type

Diode

Engraving Depth

0.01-0.05mm

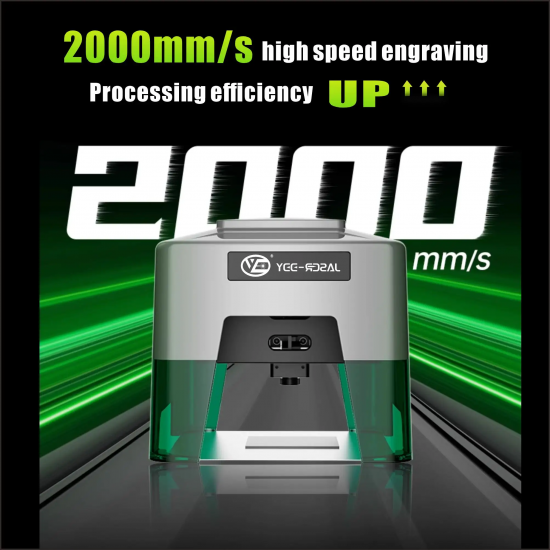

Engraving Speed

1000-3000 mm/s

cooling mode

Air Cooling

cnc or not

Yes

feature

Programmable

mode of operation

CO2 Laser

configuration

stand-alone

graphic format supported

BMP, DXP, PLT, jPg

optical lens brand

Wavelength

key selling points

Easy To Operate

Connectivity

Wi-Fi, Bluetooth, USB

warranty

1 Year

condition

New

place of origin

Guangdong, China

brand name

YEELASER

dimension(l*w*h)

190*190*180mm

Weight

1.5 KG

Picture accuracy

508 dpi

Support pic image format

JPG,BMP(24bit),TIFF ,PNG (under 32bit),PCX(8bit and 24bit),PCD

Operating system

MAC,WIN,Android,IOS

Working life

more than 10,000 hours

Supported Language

Chinese,English,Japanese

Selling Units

Single item

Single package size

26X26X25 cm

Single gross weight

3.000 kg

Laser wavelength

455nm

Cutting material

cardboard, wood,paper

Packaging and delivery

Selling Units

Single item

Single package size

30X30X30 cm

Single gross weight

3.000 kg

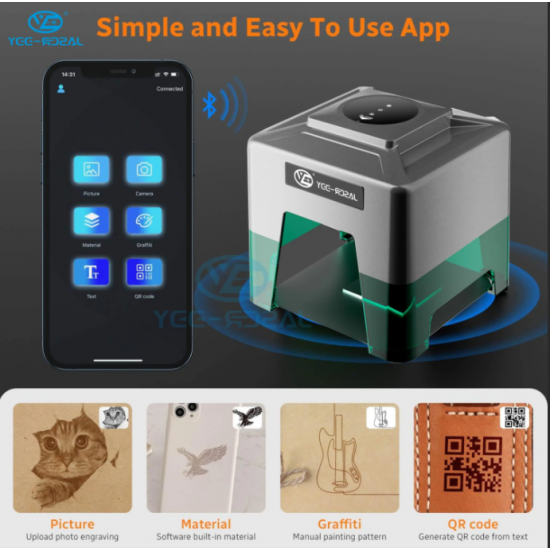

Product name	Mini Blue tooth Laser Engraving Machine
Model number	YEE-MINI4S	YEE-MINI4S Pro
Laser power	3W	5W

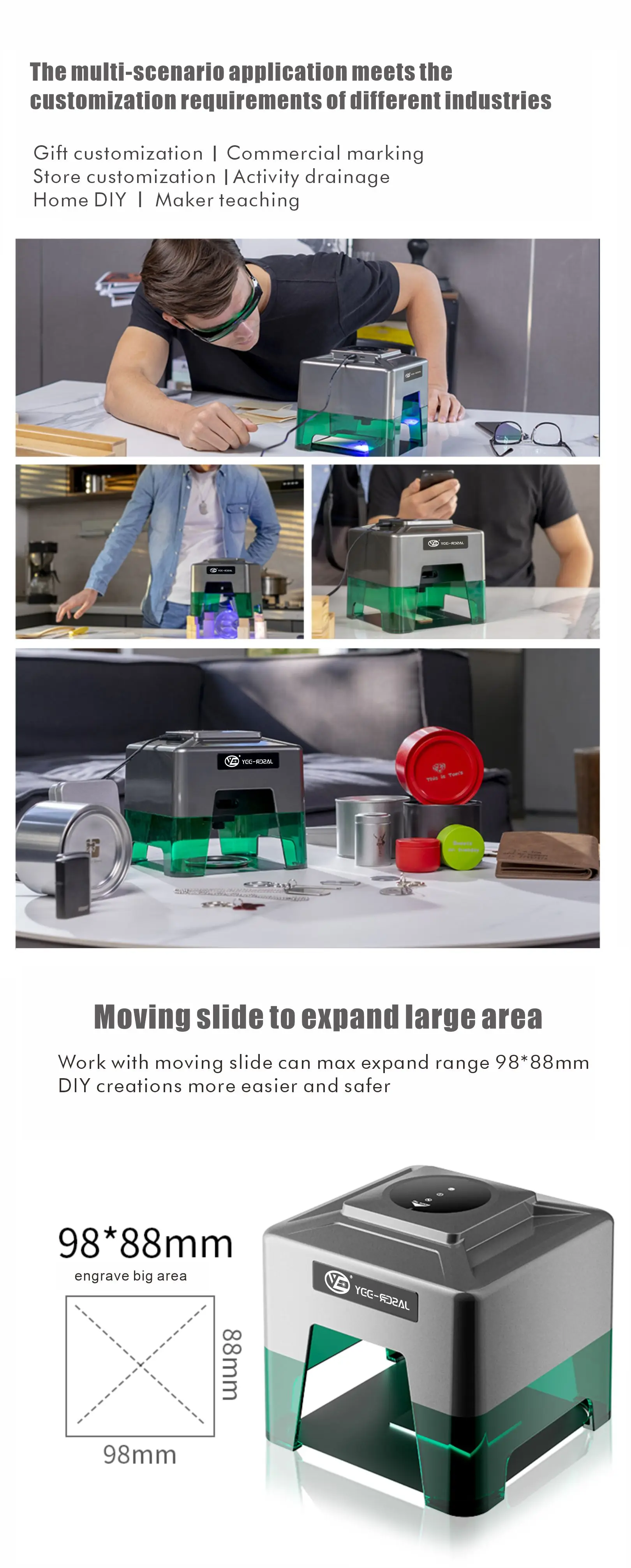

Engraving area	98*88mm	90*80mm
Engraving mode	X, Y axis drive, semiconductor LD diode light engraving
Laser wavelength	455nm
Software supported languages	Chinese, English, Japanese
Image format	JPG ,BMP (24bit),TIFF ,PNG (32bit ),PCX（8bit and 24bit),PCD
Image accuracy	508dpi (508dpi pictures can be carved 1:1 size, other resolution pictures will be automatically converted to 508dpi, But the picture size will not change)
Supported operating systems	MAC，WIN，Android，IOS
Laser is replaceable	Yes
Working temperature	0~45℃
power consumption	12w	40w
LED indicator	Power indicator: red; Working equipment indicator light: blue; Connected device status indicator: green
Working life	Laser module life of more than 10,000 hours
Engraveable materials	3W: Opaque organic materials that do not have flame retardant materials added, such as: wood, cardboard, bamboo, leather and other materials. It is also possible to cover the surface of glass, ceramics, metals, and other objects with colored paper, leaving the content of the pattern and the color of the colored paper after engraving. It can also cut softer sheets such as paper, thin s heets Wood, EVA sheets, nonwovens, fabrics, and other materials.	5W: The surface of stainless steel and other metals with low reflectivity, as well as various metal oxidations, electrophoreses, and electroplatings, can be engraved. Brass, aluminum, iron, and other metals with high light reflectivity cannot be engraved. Other combustible materials such as wood planks, plastic boards, leather, etc., can be engraved, and the power is adjustable
Non-engravable material	3W: Materials that cannot be burned, such as: metal (without a paint coating), flame retardant materials, clear plastics, mirrored objects, etc Highly reflective items.	5W: Such as gold, aluminum, copper and other metals with high reflectivity, as well as hard materials such as masonry and materials with high flame retardant properties.
Product material	Plastic + hardware + circuit board + electronic components
Certification	FCC / CE /FDA/TELEC /NCC/WEEE

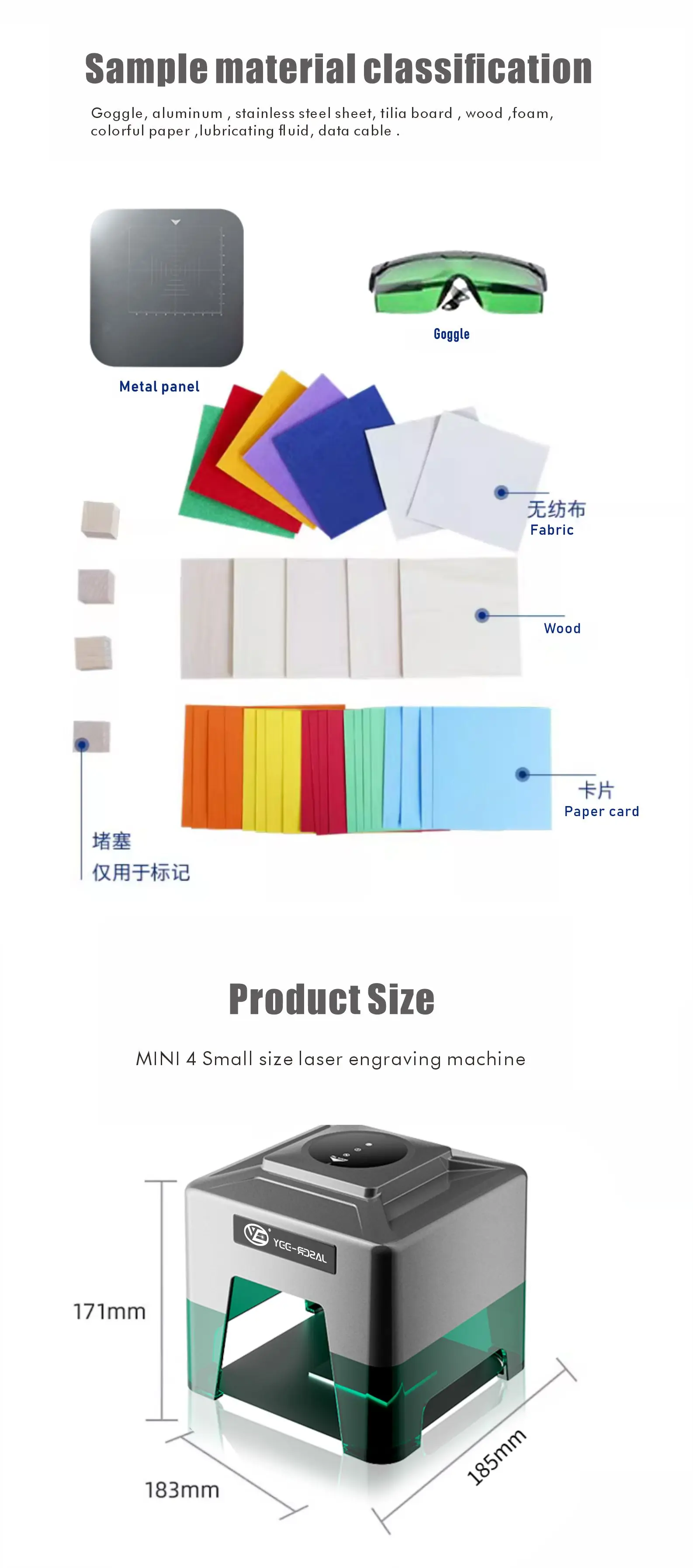

Product size	3W: 185mm* 183mm* 171mm Packing size： 240* 240* 240mm	5W： 185mm183mm 171mm Packing size： 235235240mm
Product weight	Net weight:0.9kg Gross weight: 1.4KG	Net weight:1kg Gross weight: 1.5KG
Warning	Do not use the laser light source of this product to illuminate anything other than the object to be carved, especially the human eye. When carving plastic items and cutting plastic items, fans should be used to blow away the smoke to avoid the smoke attached to the transmission parts On, causing blockage and corrosion, but also to avoid inhalation of toxic gases.
