KT-YL Series Portable Leaf Chlorophyll Meter Digital Display Mini Chlorophyll Measuring Meter Leaf Greenness Tester

KT-YL Series Portable Leaf Chlorophyll Meter Digital Display Mini Chlorophyll Measuring Meter Leaf Greenness Tester

Description

Key attributes

place of origin

Hunan, China

brand name

KETHINK

color

customized support

OEM, ODM, OBM

material

plastic

power

battery

warranty

1 Year

Model

KT-YL01

Measurement range

0.0-99.99 SPAD

Measurement area

2mm * 3mm

Measurement accuracy

within ± 1.0 SPAD unit

Repeatability

within ± 0.3 SPAD units (SPAD values between 0-50)

Measurement time interval

less than 0.8 seconds

Data storage

16GB can be grouped and stored according to user needs

Power supply

4.2V rechargeable lithium battery

Battery capacity

3000mAh

Language

English & Chinese

Packaging and delivery

Selling Units

Single item

Single package size

35X17X29 cm

Single gross weight

4.000 kg

Product Description

KT-YL Series Portable Leaf Chlorophyll Meter Digital Display Mini Chlorophyll Measuring Meter Leaf Greenness Tester

General Introduction：

The KT-YL series chlorophyll analyzer uses two different fluorescent tubes to irradiate leaves based on the absorption law of chlorophyll spectra. By measuring the intensity of light passing through the leaves, the relative chlorophyll content or green degree inside the leaves can be calculated, providing reliable scientific basis for reasonable, appropriate, and timely fertilization. It is widely used in scientific research and production guidance in agriculture, forestry, plants, and other fields.

Feautres:

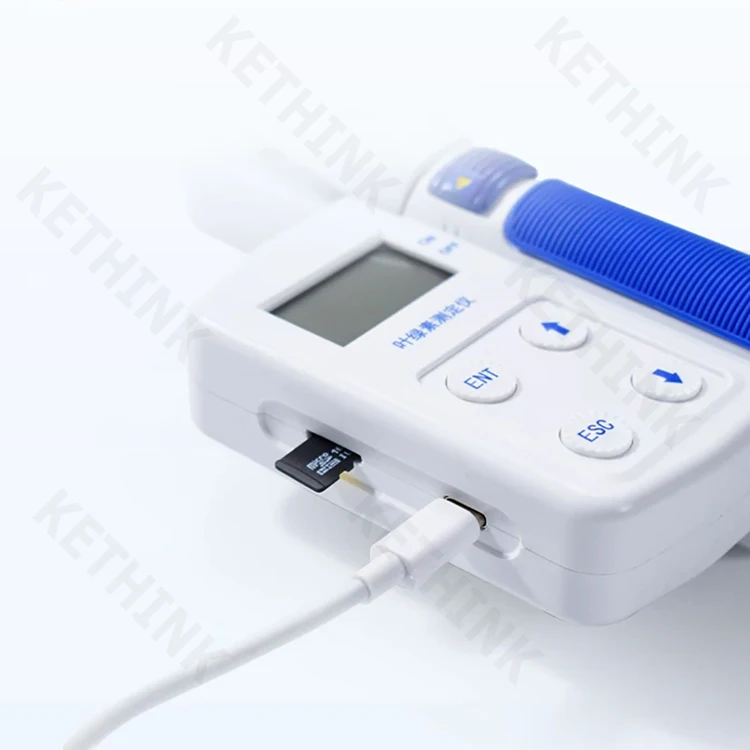

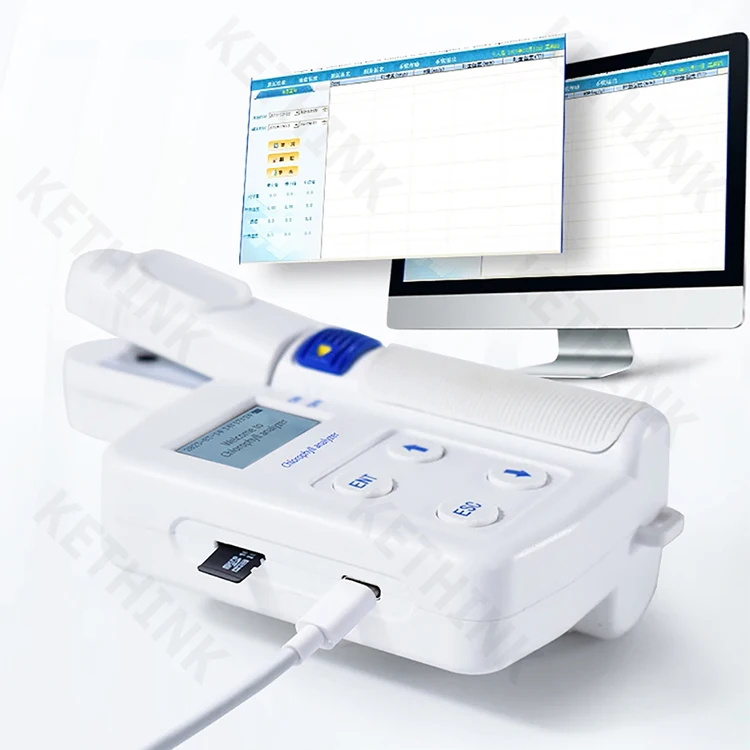

1) Fast and non-destructive plant live detection, measurement only requires inserting the leaves, no need to pick the leaves, does not affect the normal growth of crops, can monitor the leaves throughout the crop growth process, and obtain more scientific analysis results.2) High measurement accuracy (accuracy: ± 1.0 SPAD, repeatability: ± 0.3 SPAD).3) 16GB large storage space, data can be grouped for storage, viewing, and exporting.4) Multi functional USB interface, which can realize data export and charging functions. The instrument can be directly connected to the computer, and data export does not require upper computer software. It can also choose to use a memory card to directly export data, with simple and convenient operation.5) Data browsing: Measurement data can be browsed at any time on the instrument, and abnormal data can be deleted at will.6) High contrast LCD display screen, which can clearly display data even under strong light.7) Low power mode design, built-in large capacity lithium-ion rechargeable battery, with overcharge prevention function, energy-saving and environmentally friendly, and convenient outdoor operation.8) Built in bilingual display in Chinese and English, one click switching, seamless integration.9) Standard configuration: host, charger, USB data cable, memory card, card reader, portable aluminum case, certificate of conformity, instruction manual, etc.

Technical Data:

Model	KT-YL01
Measurement range	0.0-99.99 SPAD
Measurement area	2mm * 3mm
Measurement accuracy	within ± 1.0 SPAD unit (SPAD value ranges from 0-50 at room temperature)
Repeatability	within ± 0.3 SPAD units (SPAD values between 0-50)
Measurement time interval	less than 0.8 seconds
Data storage	16GB can be grouped and stored according to user needs
Power supply	4.2V rechargeable lithium battery
Battery capacity	3000mAh
Weight	230g
Working and storage environment	-10 ℃~50 ℃ ≤ 85% relative humidity

Detailed Images

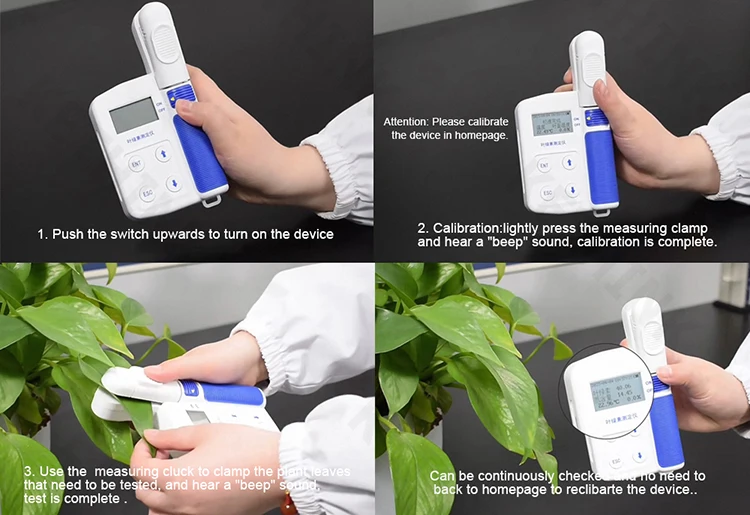

Operation:

Plugs Available

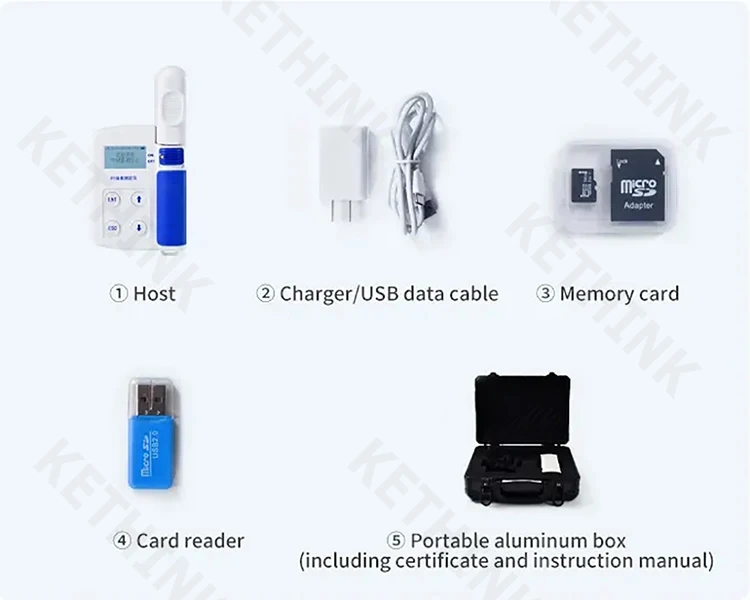

Packing List

Packing&Shipping

Packing:
1) Waterproof membrane;
2) Shockproof packaging;
3) Standard export wooden box

Shipping:
1) By sea;
2) By air;
3) DHL, Fedex, TNT, UPS, EMS & CDEK
4) By land.

After Sales Service

1.Warranty
1 year for free,techinical support for life.
2.Training
On-line free training or welcome to visit our factory for free training.
3.Within Warranty
Accessories offered for free if the product has quality problem. If damaged by wrong operation, accessories charged, free technical support.
4.Out of Warranty
Only damaged parts charged, technical support is for free.

5.OEM & ODM SERVICE
customized shell,control system interface,language, logo,packing.
