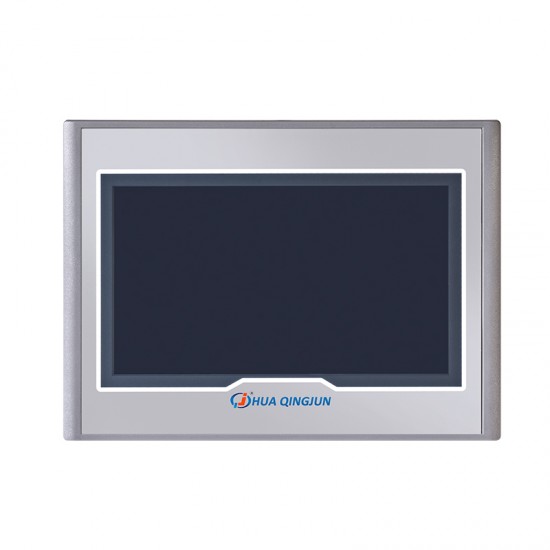

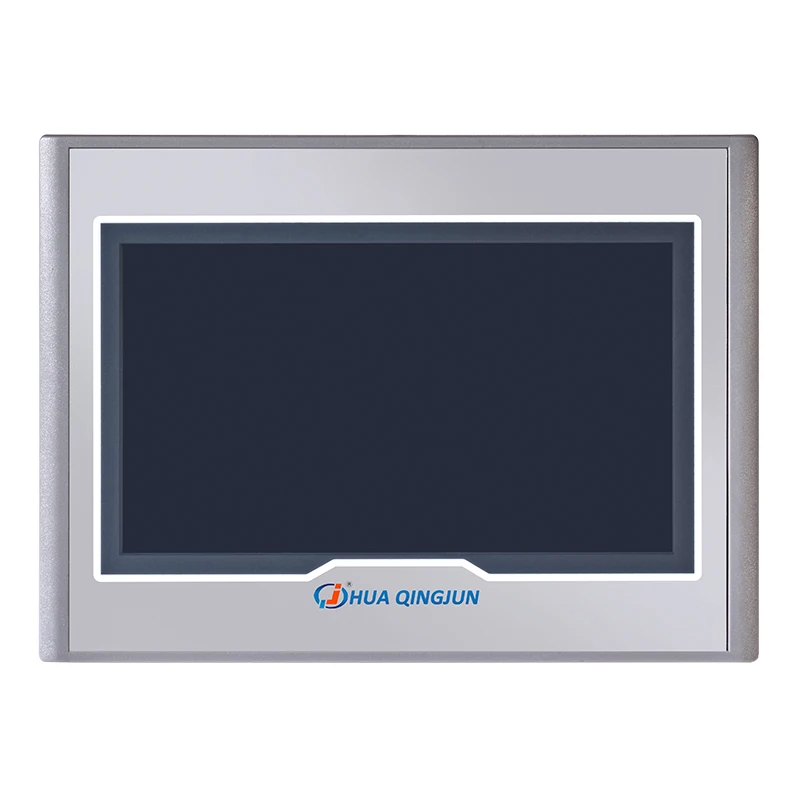

Huaqingjun 7 Inch HMI PLC All-in-one Ethernet RS485 232 48MR 24IO Relay Output Ladder Diagram Controller for Automation
Key attributes
Communication Interface
RS-232, RS-485, Ethernet
Network
Ethernet
Resolution
800*480
Model Number
QJ-070-3U48MR
Brand Name
Huaqingjun
Place of Origin
Guangdong, China
Application
Industrial Automation
Material
ABS
Size
7-inch
Product name
7-inch HMl PLC All-in-one 24IO Relay Output
Power Voltage
10-28VDC
Backlight type
LED(PWM stepless adjustment)
Touch
4-wire resistive touch screen
LCD resolution
800X480

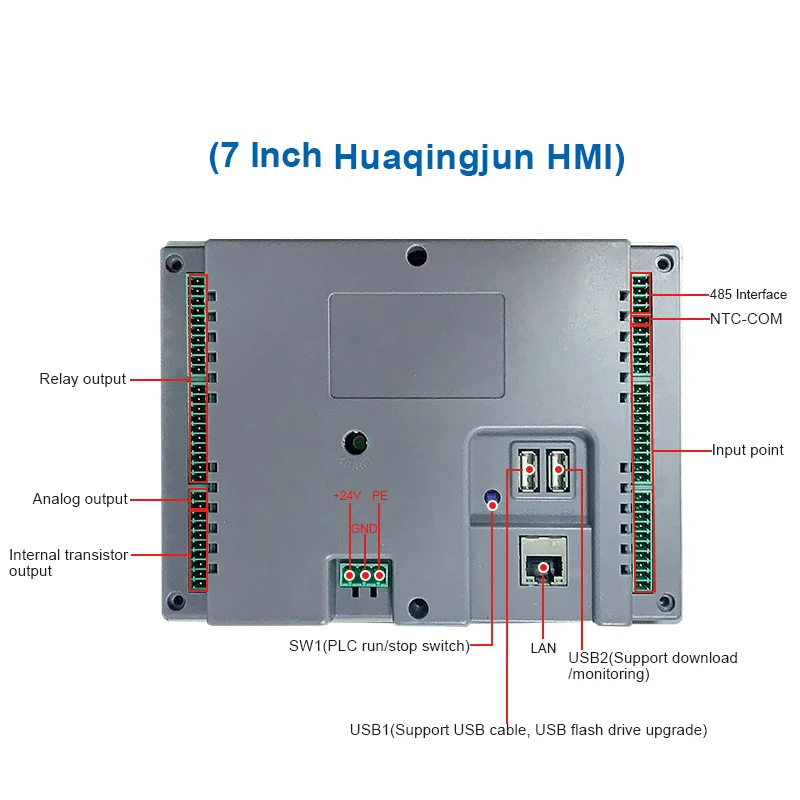

Communication ports
1-channel RS422,RS232, 2-channel RS485 communication
Ethernet
10/100M optional
Storage
128Mbyte SPI NAND FLASH
Lightness
350cd/m2
Coloration
True color 65K.RGB
Packaging and delivery
Selling Units
Single item
Single package size
25X17X8 cm
Single gross weight
1.200 kg
Show more
Product Description
Type | 7-inch HMI, 24DI 24DO relay output PLC |
Operating temperature | -20~70℃ |
Storage temperature | -30~80℃ |
Environmental humidity | 10~90%RH(non-condensing) |
RAM | Built-in 64 M DDR |
Overall dimension | 222mm*194mm*38mm |
Opening dimension | 177mm*122mm |
Supply current | -500mA(24VDC) |
