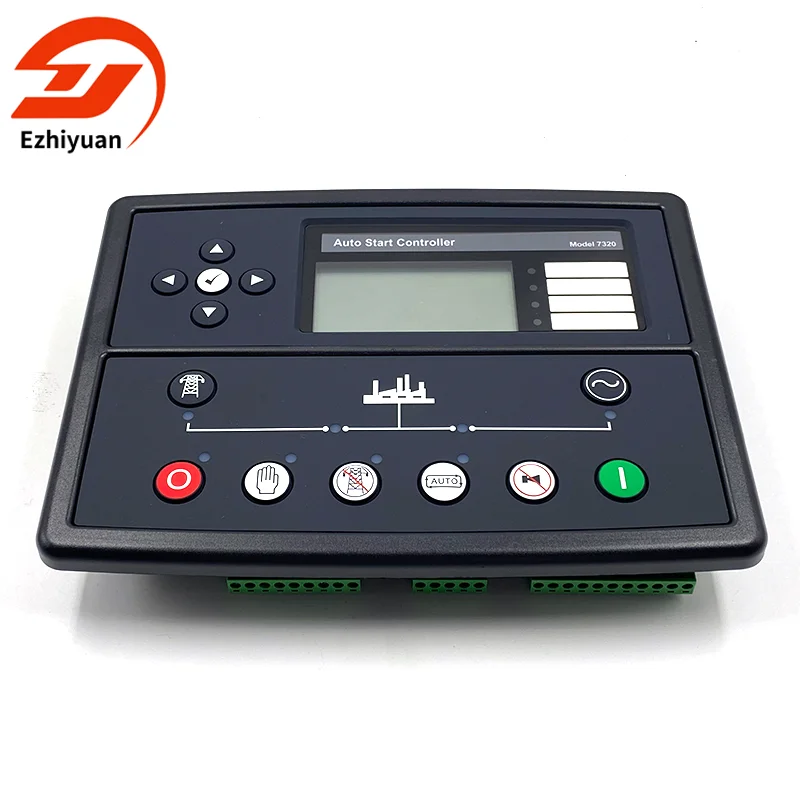

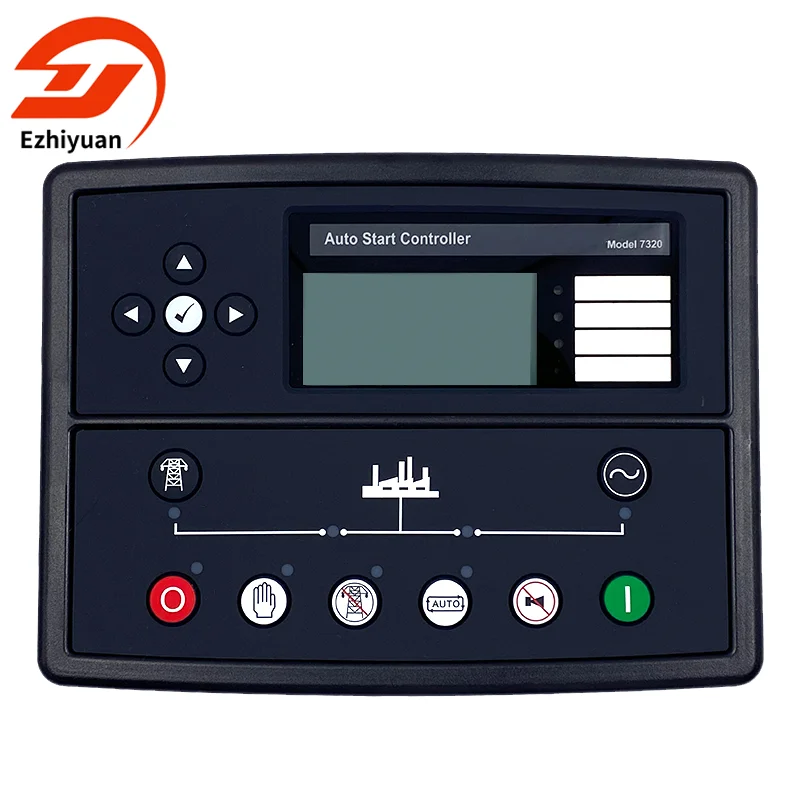

The DSE7320 DSE Genset Controller is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).
The Deep Sea 7320 Generator Auto Controller will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion.
Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.
The modules can be easily configured using the DSE Configuration Suite PC software.
Selected front panel editing is also available.
Replace Deep Sea DSE7320 Genset Gen set Generator ATS Controller | |
Continuous voltage rating | 8 to 35 V Continuous. |
Cranking Dropouts | able to survive 0 V for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. |
Maximum operating current | 340mA at 12 v, 160mA at 24V |
Maximum standby current | 160 ma at 12 V. 80mA at 24V |
Charge Fail/ Excitation Range | 0 v to 35 v |
Voltage Range | 15v- 333v ac (L-N) |
Frequency Range | 3.5 Hz to 75Hz |








Q1: Who are you?
A1: We are factory and exporter of generator parts.
Q2: How to place order?
A2: Send order link or contract ----- You confirm and pay -----Arrange shippment ----Upload the tracking number---- You received.
Q3: What is the warranty?
A3: Warranty is 1 years.
Q4: Do you check all your goods before delivery?
A4: Yes, we will check the quality 100% before we send out the goods.
Q5: How long is delivery time?
A5: If goods in stock,it needs 2-3 days after payment. If big quality and not in stock, it will needs about 3-7 days to make.
Q6:What is your payment way?
A6 : T/T, Western Union, Paypal, Alibaba order link, Money Gram, RMB directly. Cash.
Q7: What is your shipping way?
A7: If by our forwarder, we will send it by Express, like FedEx,DHL,UPS,TNT,Aramex Etc.
If you have your own forwarder in China, it is free shipping to your forwarder's warehouse.
Q8: What is your packing type?
A8: All of our goods are packed by plastic bag to waterproof and protect the goods during the delivery.
- Stock: In Stock
- Model: 1601398678818
- Weight: 1.00
- SKU: 1601398678818
