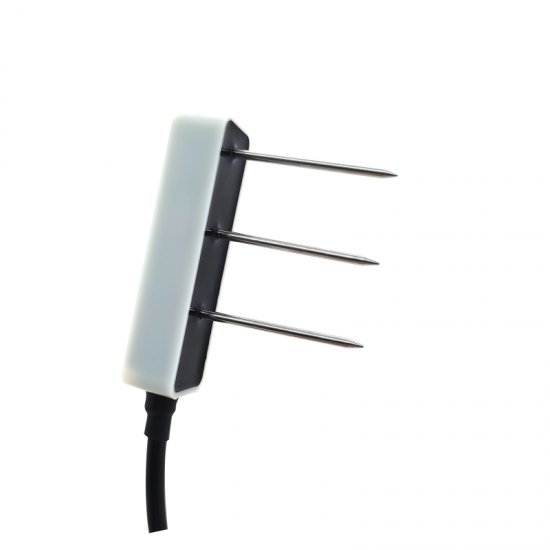

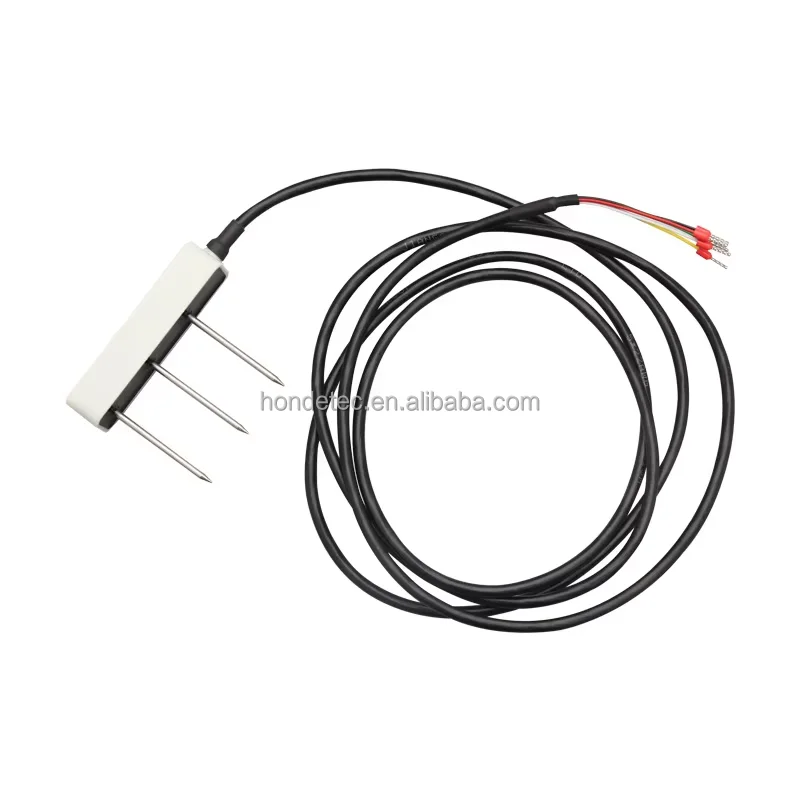

Robust Teros12 SDI-12 Advanced Soil Moisture Temperature EC Sensor for Agriculture Irrigation and Rockwool Coco Measurement
Key attributes
Application
Agriculture
type
Soil Moisture Meter
place of origin
Beijing, China
Material
Plastic
model number
HD-MEC20-01
brand name
HONDETEC
customized support
OEM, ODM, OBM
warranty
1 year
Product name
Soil Temperature Moisture EC Meter
MOQ
1PC
Signal output
Standard MODBUS-RTU/RS485/0-2V/4-20mA
Wireless type
GPRS/4G/LORA/LORAWAN/WIFI
Free cloud server and software
Can supply
RS485 to USB convertor
Send free
Waterproof
IP68
Application
Soil tester for the Agriculture
Calibration
Modbus instruction
Shell material
Epoxy resin
Packaging and delivery
Selling Units
Single item
Single package size
15X12X4 cm
Single gross weight
0.800 kg
Show more
Product Description
Features And Function

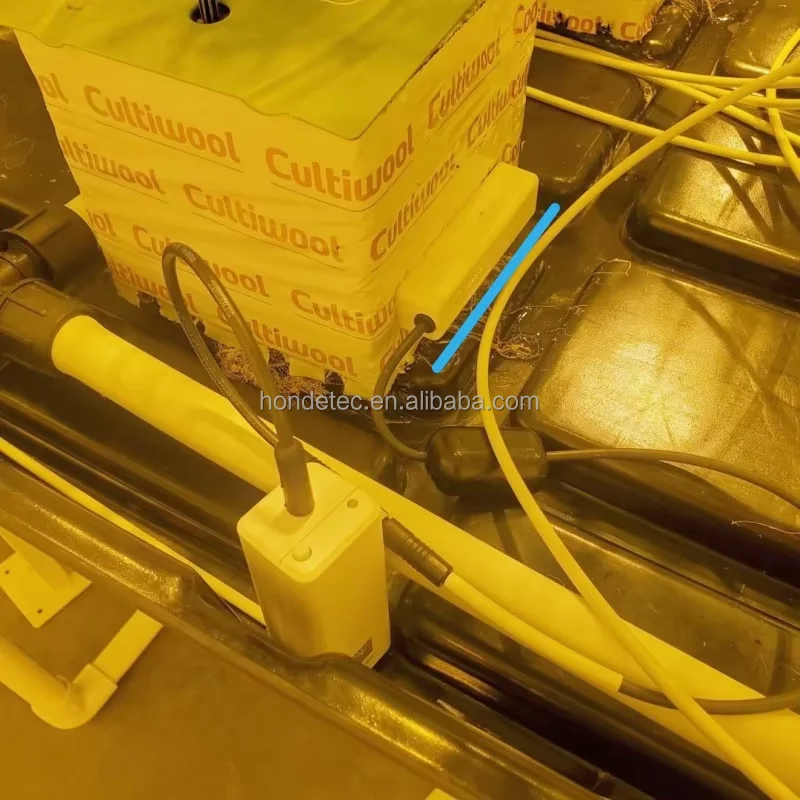

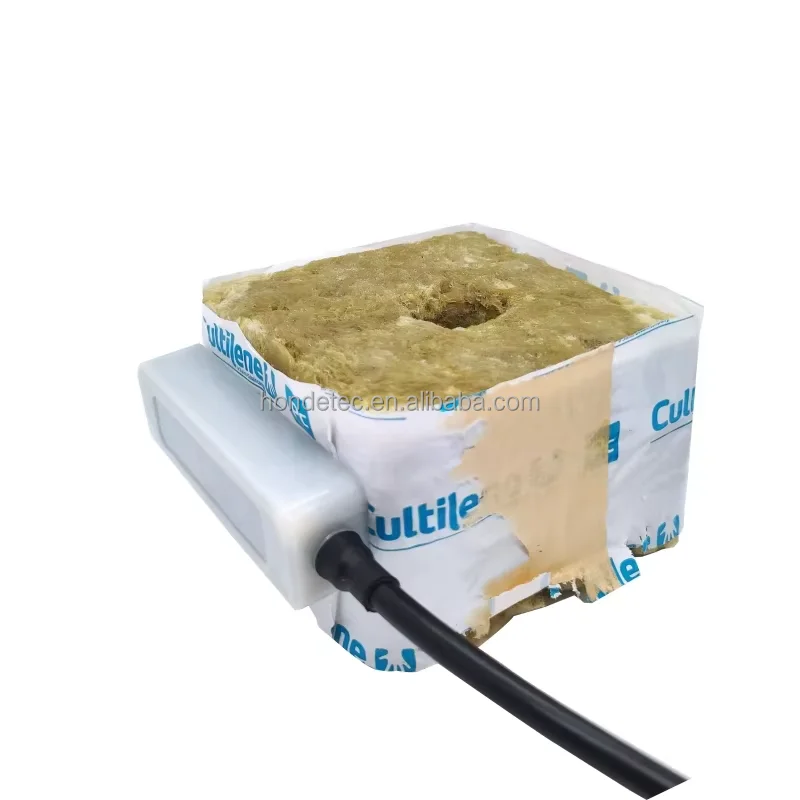

Can measure different substrates, including soil, coconut shell, Cultiwool, etc.It can also be used for the conductivity of water and fertilizer integrated solution, as well as other nutrient solution and matrix
Can measure the soil temperature and humidity EC three parameters at the same time;A variety of output modes are optional, analog voltage output, current output, RS485 output, SDI12 output
IP68 protection grade, completely sealed, acid and alkali corrosion resistance, can be buried in soil or directly into the water
for long-term dynamic detection
for long-term dynamic detection

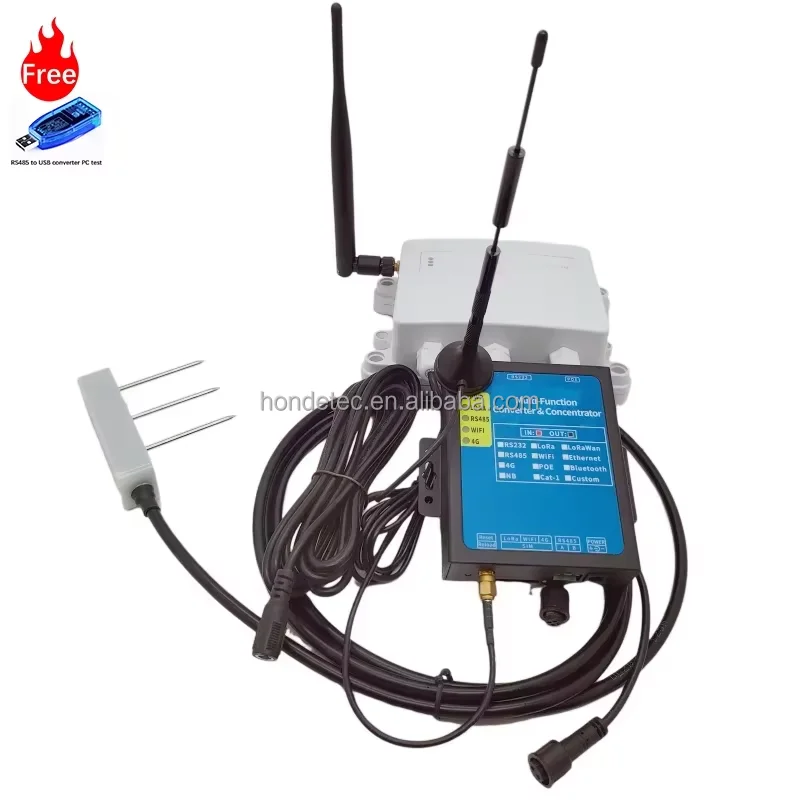

Can integrate all kinds of wirelessmodule, GPRS/4g/WIFI/LORA/LORAWAN and form a complete set of servers and software, and view the real-time data and historical data
Can integrate all kinds of wirelessmodule, GPRS/4g/WIFI/LORA/LORAWAN and form a complete set of servers and software, and view the real-time data and historical data
Specification
Product Name | Soil Temperature Moisture EC Sensor |
Probe type | Probe electrode |
Measurement parameters | Soil Temperature Moisture EC |
Moisture measure range | Optional range: 0-50%, 0-100% |
Resolution | 0.03% within 0-50%, 1% within 50-100% |
Accuracy | 2% within 0-50%, 3% within 50-100% |
Temperature range | -40~80℃ |
Resolution | 0.1℃ |
Accuracy | ±0.5℃ |
EC measure range | Optional range: 0-5000us/cm, 10000us/cm, 20000us/cm |
Resolution | 0-10000us/cm 10us/cm, 100,000-20000us /cm 50us/cm |
Accuracy | ±3% in the range of 0-10000us/cm; ±5% in the range of 10000-20000us/cm |
Outputsignal | A:RS485 (standard Modbus-RTU protocol, device default address: 01)/4-20mA/0-2V |
Output signal with wireless | A:LORA/LORAWAN |
B:GPRS | |
C:WIFI | |
D:4G | |
Cloud Server and software | Can supply the matched server and software to see real time data in PC or mobile |
Supply voltage | 3.9-30V/DC/12-30V DC/2.7-16V DC/2-5.5V DC |
Working temperature range | -40 ° C ~ 85 ° C |
Measurement principle | Soil moisture FDR method, soil conductivity AC bridge method |
Measurement mode | The soil was directly tested by in-situ insertion or immersion into culture medium, water and fertilizer integrated nutrient solution |
Probe material | Special anticorrosive electrode |
Sealing material | Black flame retardant epoxy resin |
Waterproof grade | IP68 |
Cable specification | Standard 2 meters (can be customized for other cable lengths, upto 1200 meters) |
Connection mode | Pre-installed cord end terminal |

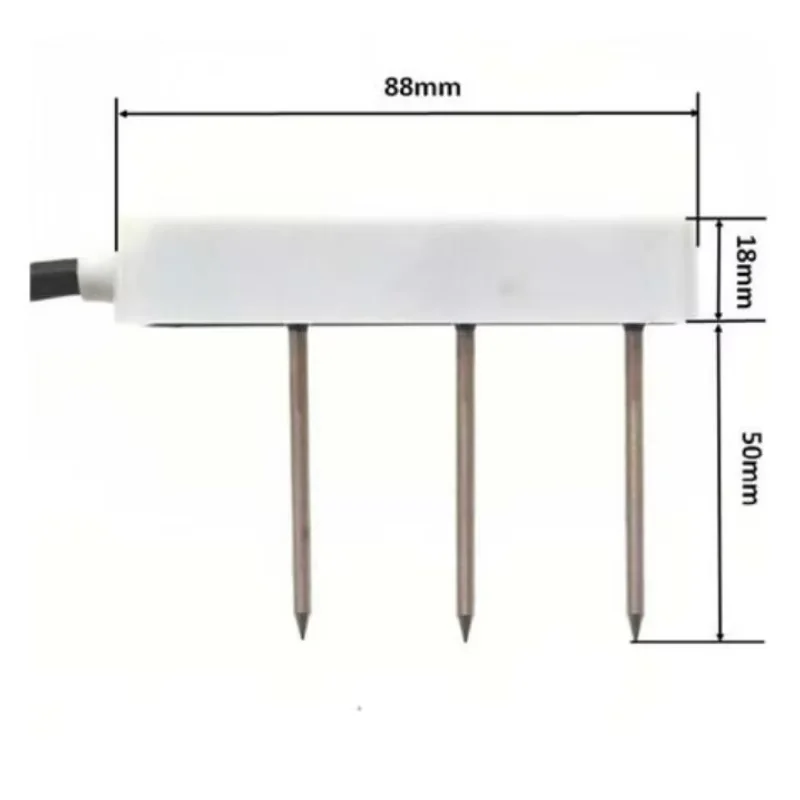

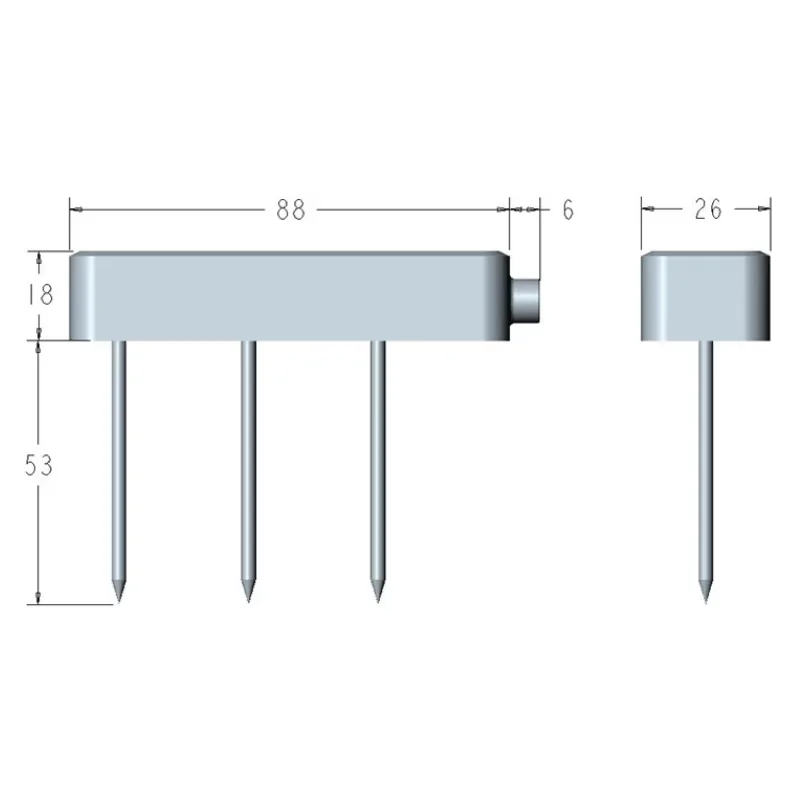

Overall dimension | 88*26*71mm |
Electrode length | 50mm |
Product advantages

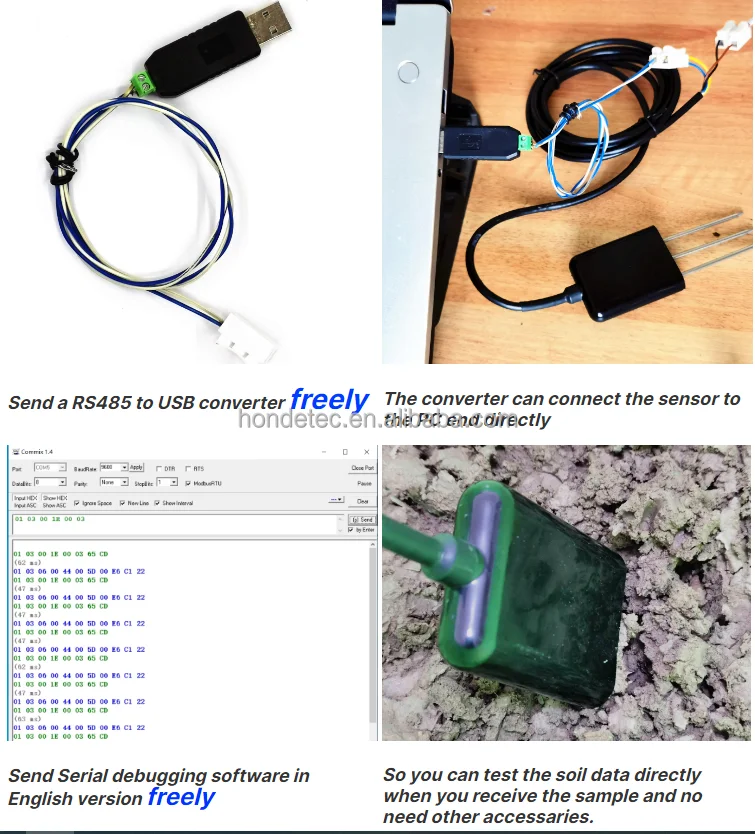

Send the test kits totally free

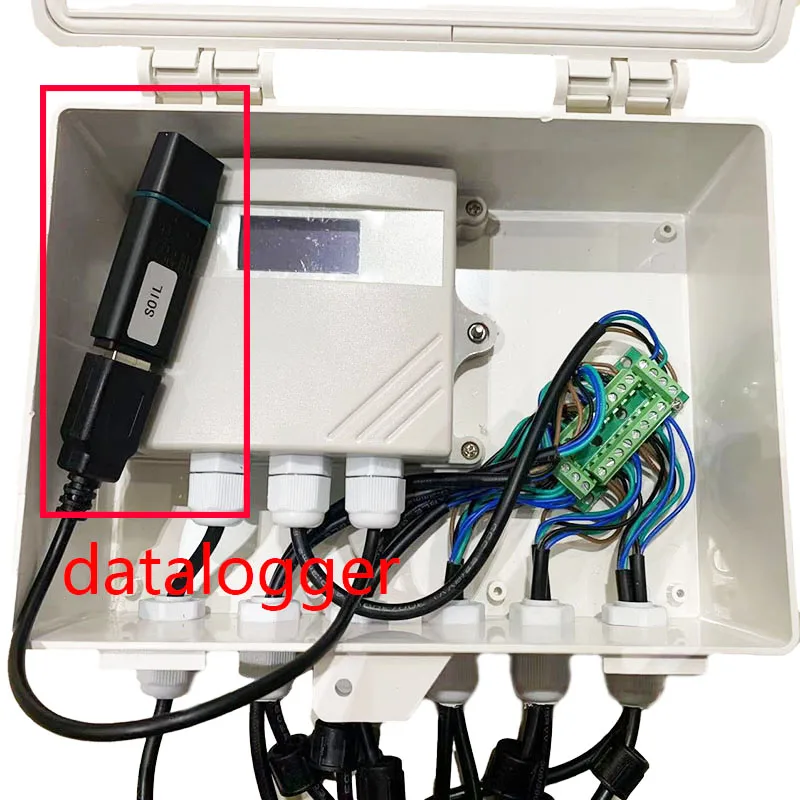

Terminal end with the Screen and the Datalogger with SD card can be customizable.
Advantage 3:

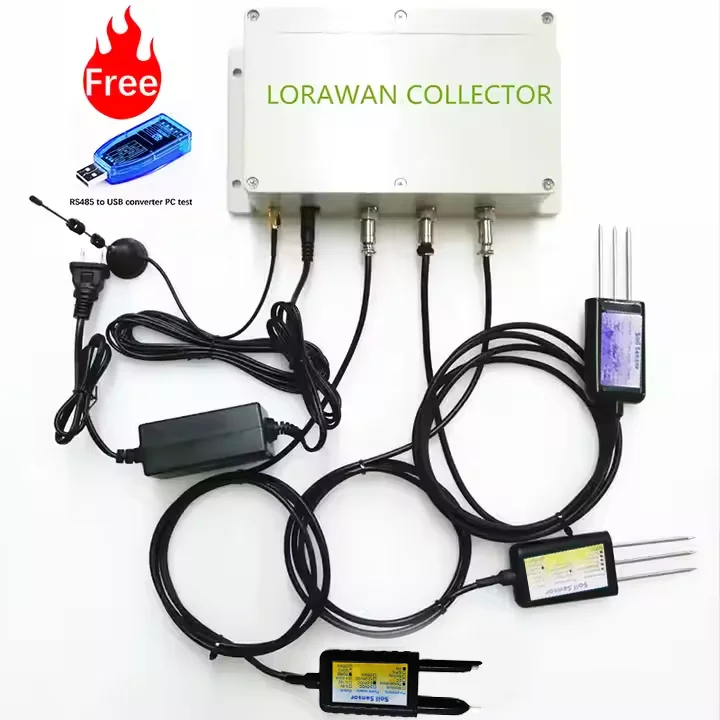

The LORA/ LORAWAN/ GPRS /4G /WIFI wireless module can be customizable.
Supply the matched cloud server and software to see real time data in PC or Mobile
- Stock: In Stock
- Model: 1601583244854
- Weight: 1.00
- SKU: 1601583244854
$149.00
Ex Tax: $149.00
