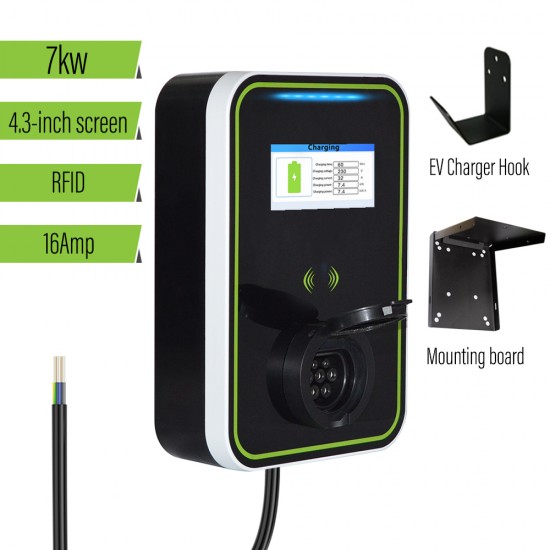

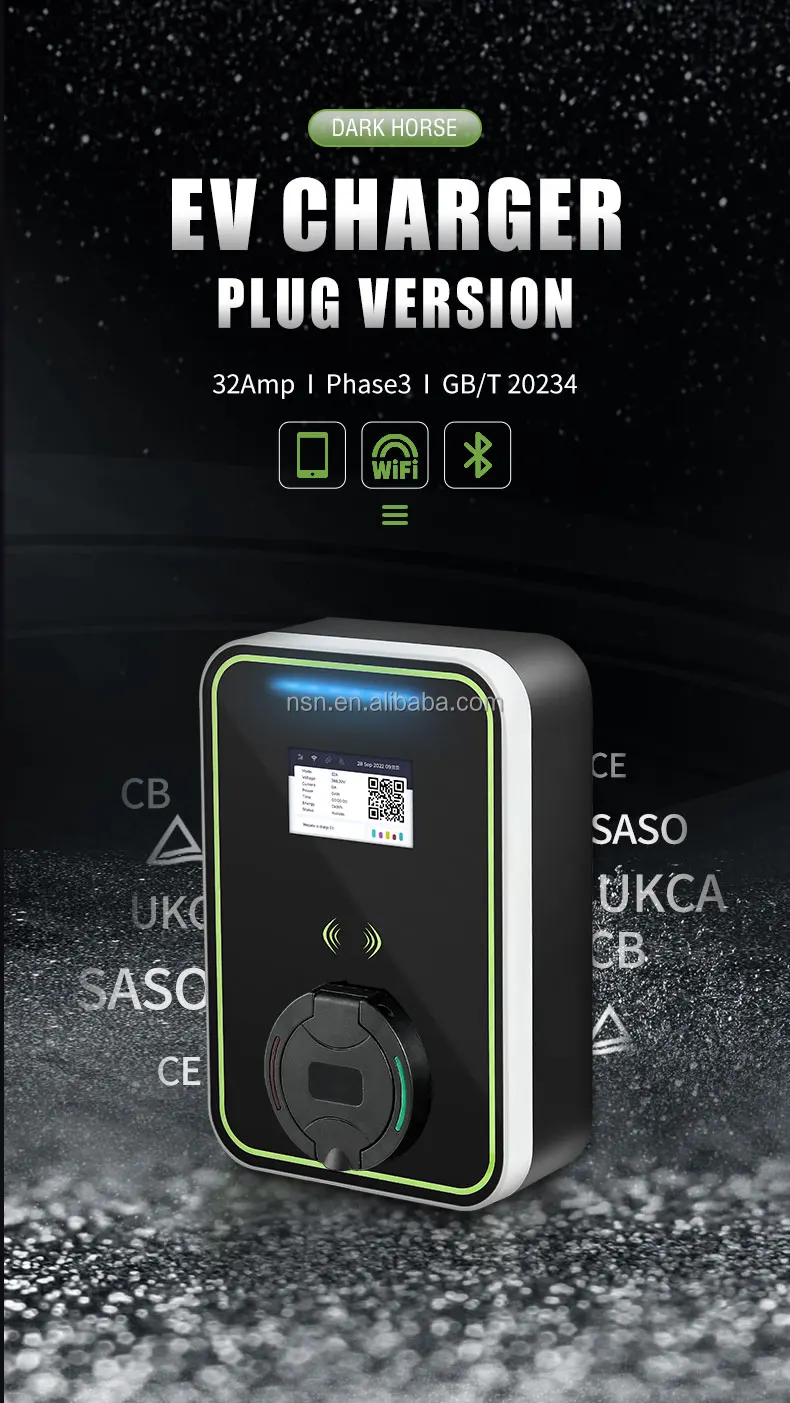

Socket Type AC EV Charger 22kw 11kw 7kw Home Use Smart Wallbox Charging Station Untethered Model With Bluetooth WIFI APP Control

Socket Type AC EV Charger 22kw 11kw 7kw Home Use Smart Wallbox Charging Station Untethered Model With Bluetooth WIFI APP Control

Description

Key attributes

Place of Origin

Sichuan, China

Interface Standard

TYPE 2

Output Current

Output Power

7-22KW

Input Voltage

110V-480V

Purpose

for replace/repair

Condition

New

Model Number

SEVK

Brand Name

Product name

AC EV charger

Certificate

CE UKCA

Function

Wifi/4G Swipe Card/Bluetooth/App

Warranty

12 Months

Charging Standards

SAE J1772, IEC-62196

Cable length

5M(Customizable)

Charging Mode

Auto Charge

Rated Output Power

3.5KW/7KW/11KW/22KW

Protection level

Level IP55

Packaging and delivery

Selling Units

Single item

Single package size

65X25X20 cm

Single gross weight

8.000 kg

PRODUCT SPECIFICATIONS

Technical features

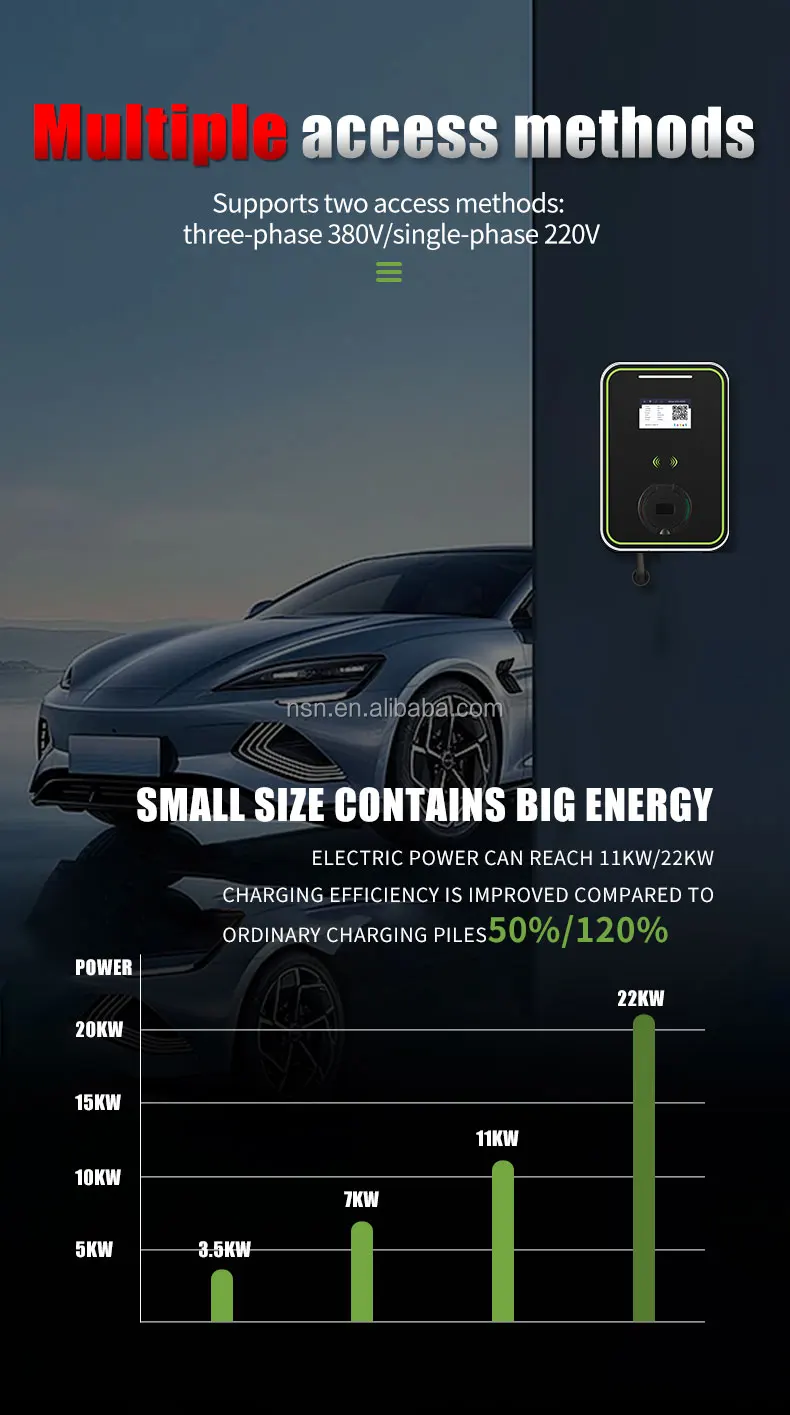

Output power	7KW	11KW	22 KW
Input/Output voltage/frequency/current	220VAC±20%-50/60Hz-32A-1phase	380VAC±20%-50/60Hz-16A-3phase	380VAC±20%-50/60Hz- 32A-3phase
RCD	Type A (or upgrade to TypeA+DC6mA)
Energy Meter	MID Certified
OCPP	OCPP1.6 Json (Optional)

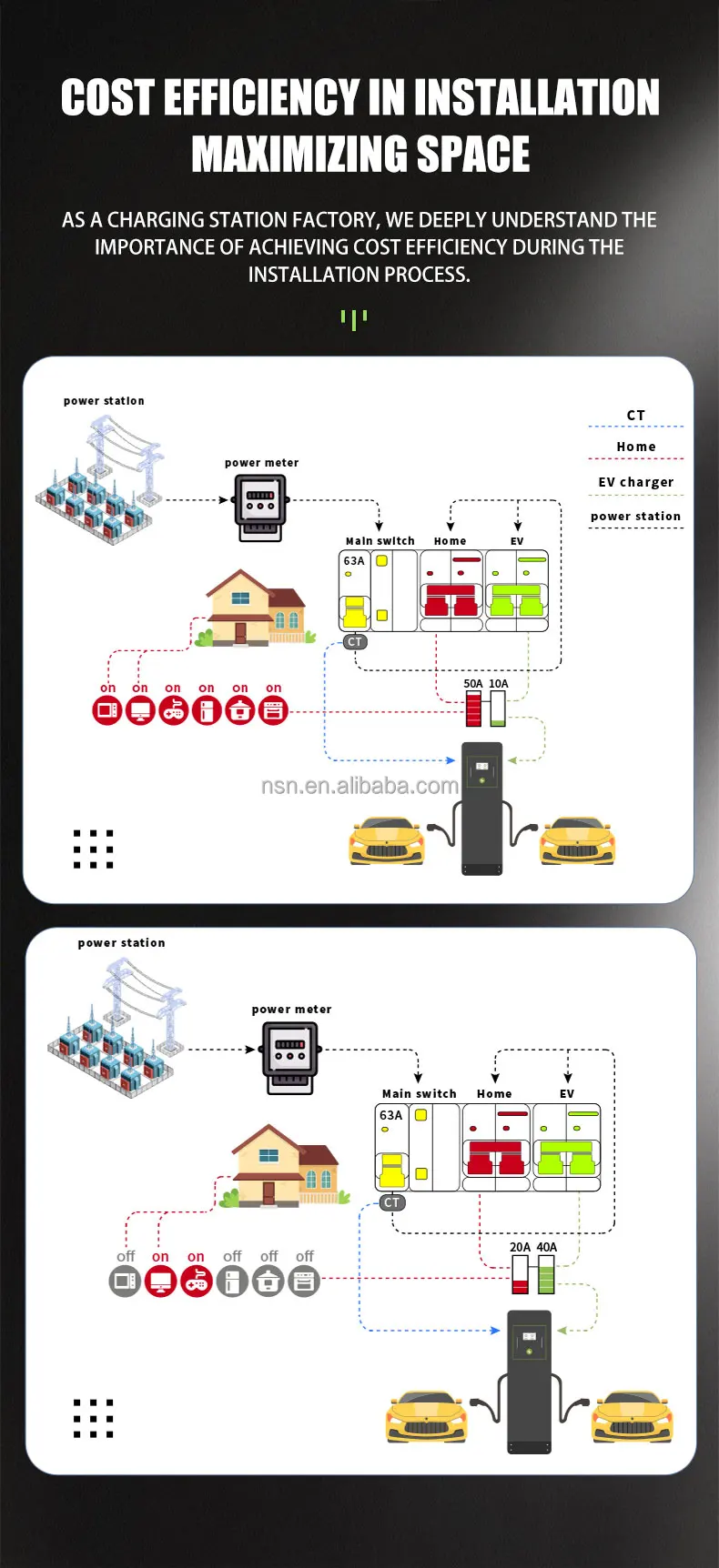

Load Balancing	Adapter cable and accessories（Optional）
APP	Home use version APP(Optional)
RFID	2 user cards(Optional)
Communication	WIFI / Ethernet / 4G/ (Optional)

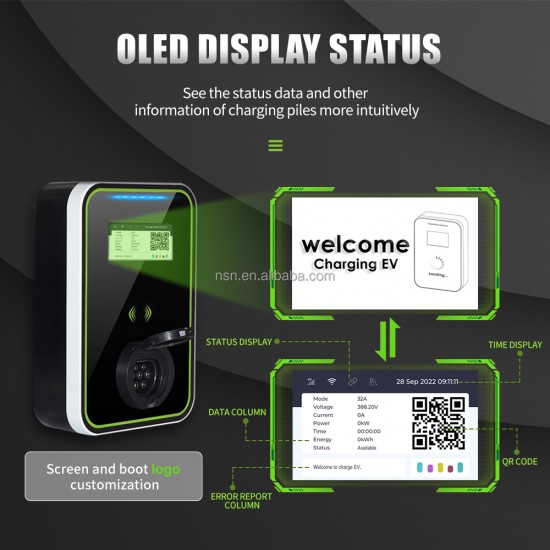

User interface	4.3 inch LCD highlight display with indicator
Certiﬁcate	CE, OZEV List, UKCA,SASO
Connector Type	SAEJ1772(Type 1) / IEC 62196-2 (Type 2)
Cable Length	5M(16.4FT) standard or customization

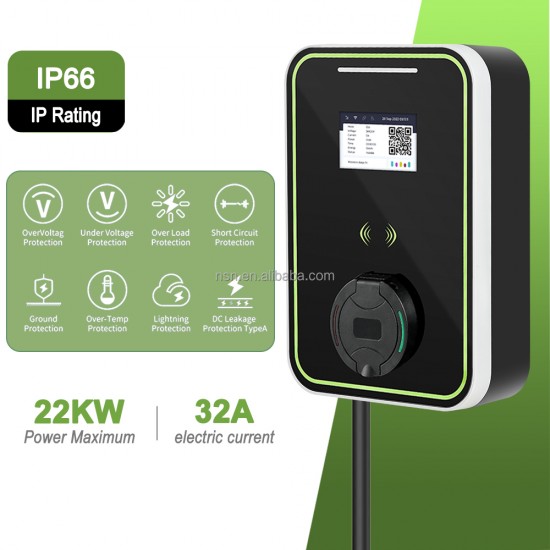

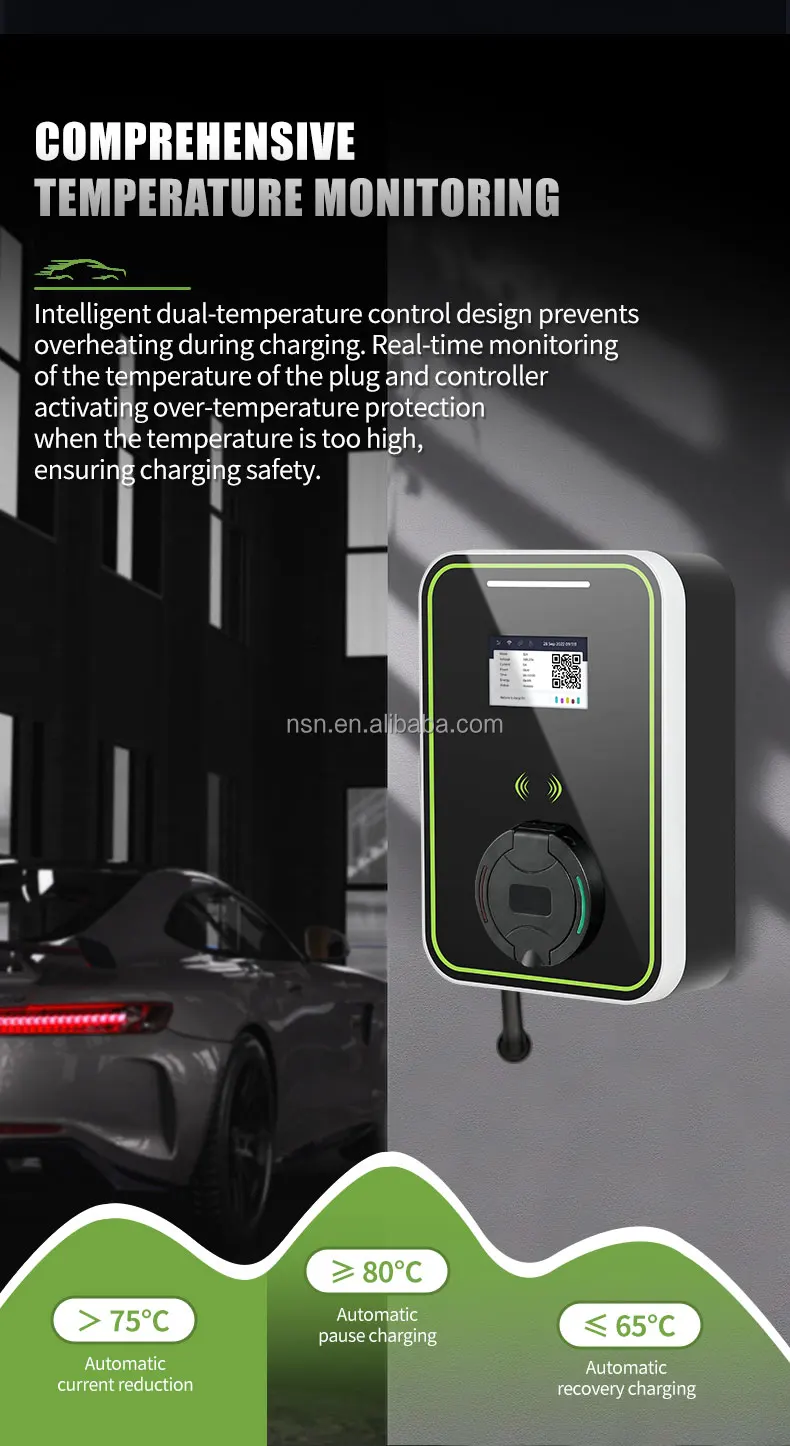

Special Protection	Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Physical properties
Warranty	1 year
Protection	IP65
Special protection	UV Resistance

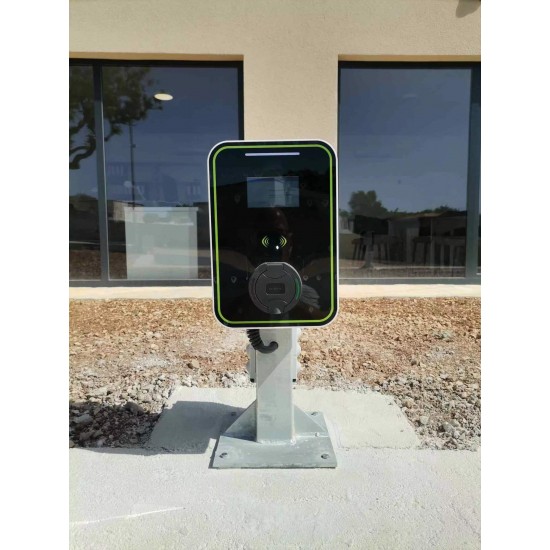

Installation	Wall-mounted or floor-mounted (optional)
Cooling	Natural cooling
Operating temperature	-40˚C to +65˚C
MTBF	≥100000H
Humidity	Max.95%(non-condensation)

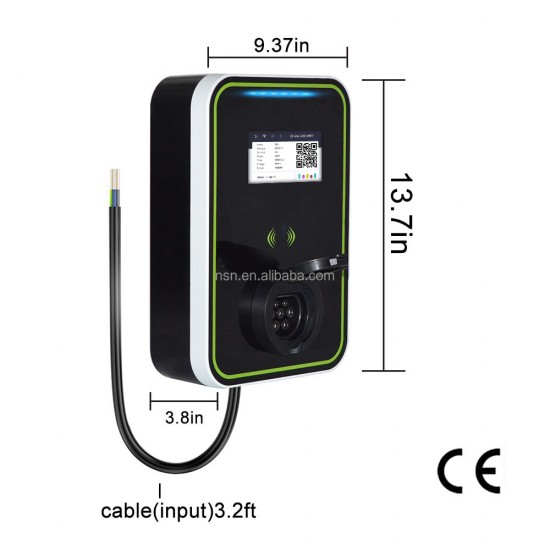

Product Dimensions	35024095mm
Weight	8KG

Products Description

Company Profile

ABOUT US

Chengdu Natural Smart New Energy Co.,Ltd located in JinCheng Plaza, Chengdu city, Sichuan Province, China. We work with many professional suppliers. We offer the product & technical service in smart and innovative new energy charging solution, including Portable power station, AC and DC EV chargers, EV plugs, EV connectors, integrated solution for photovoltaic energy storage charging and some photovoltaic charging accessories, etc.Our trading team was founded in 20 15, have 7 years EVSE manufacturer experience. Our cooperative factory has a number of charging pile fully automated assembly lines, and the scale of production equipment is leading in the country. We can do a variety of OEM and ODM orders and provide design service at home and abroad. All our products meet CE / RoHS / Reach approved, and with RGD less than 2%. We also have multilingual after-sales service and international export certificates.Our products have been spread all over the world and enjoy a good reputation in many markets. Up to now, the products are exported to more than 50 countries in Europe, the Americas, the Oceania, Middle East and Asia. In addition, we have a complete range of products specifications that can provide customers with one-step service. We are committed to achieve a win-win situation and establish a long-term relationship with our customers.

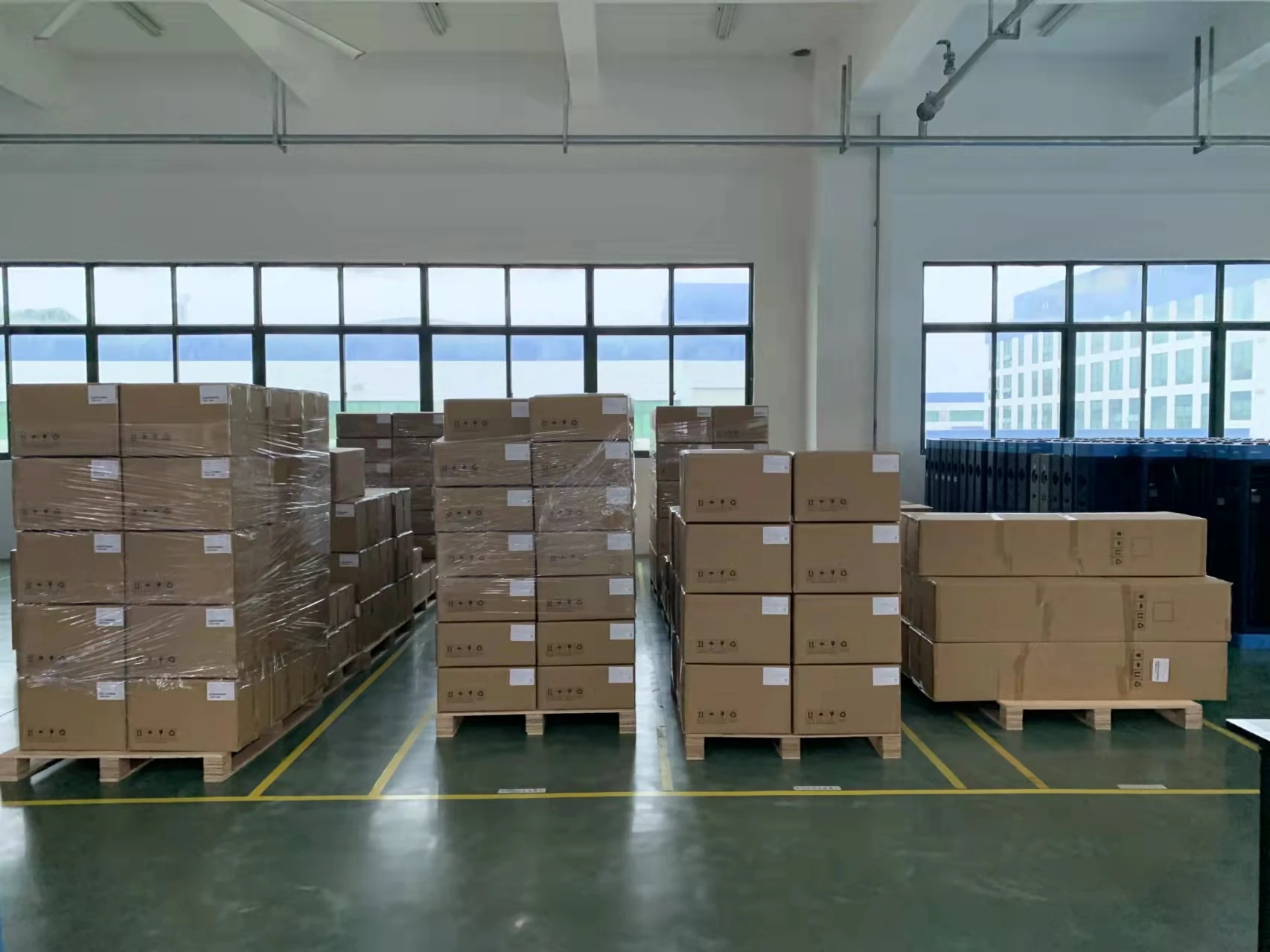

Packing and Logistics

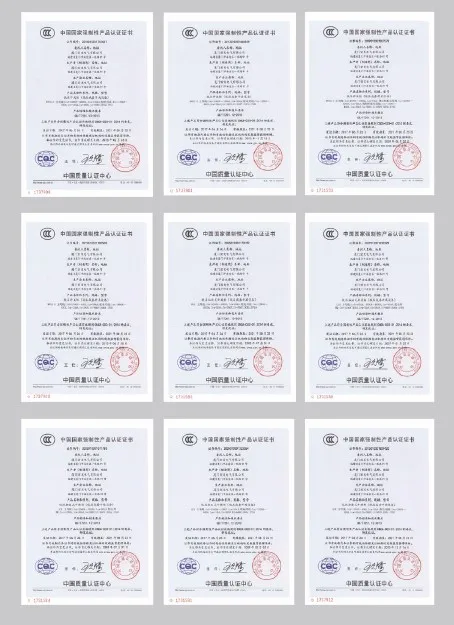

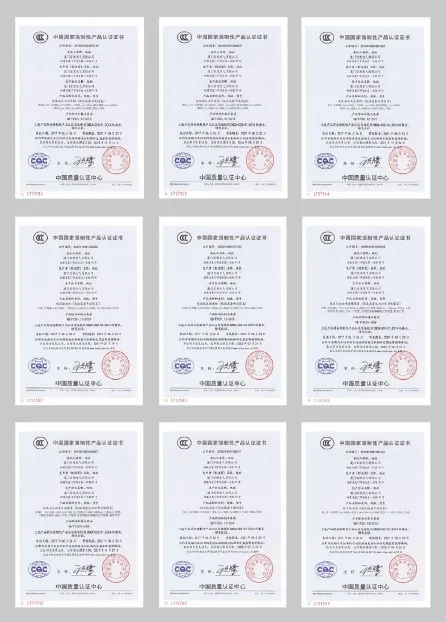

Certifications

FAQ

Q1: Are you trading company or manufacturer?
A: We are trading company.

Q2: How long is your delivery time?
A: Generally, it is 10-15 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to
quantity.

Q3. What are your terms of payment?
A: PayPal, Western union, a trade assurance, L/C,T/T.

Q4. What are your terms of trade?
A: EXW, FOB, CFR, CIF, DAP, DDU, DDP.

Q5. What are your terms of packing?
A: We pack our goods in cartons.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q7. Do your products have quality certification? How long is the warranty time?
A: All of our EV charging products posses with CE, ROHS certifications, warranty for EV charger 12 months.

Q8. Can we require you to print our logo on your products? Do the color of plug and cable can be customized according to our requirements?
A: We support OEM production.
