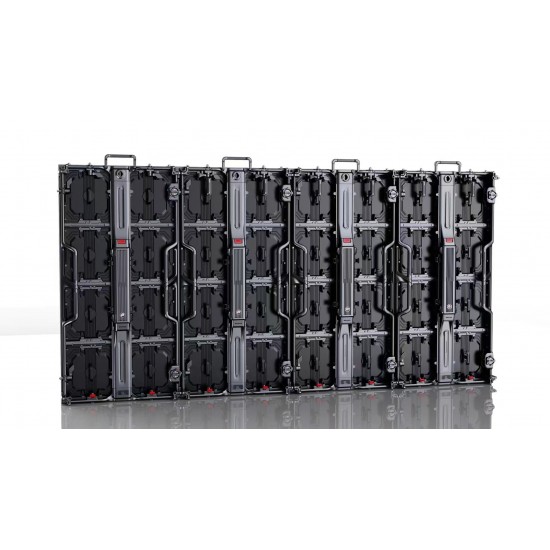

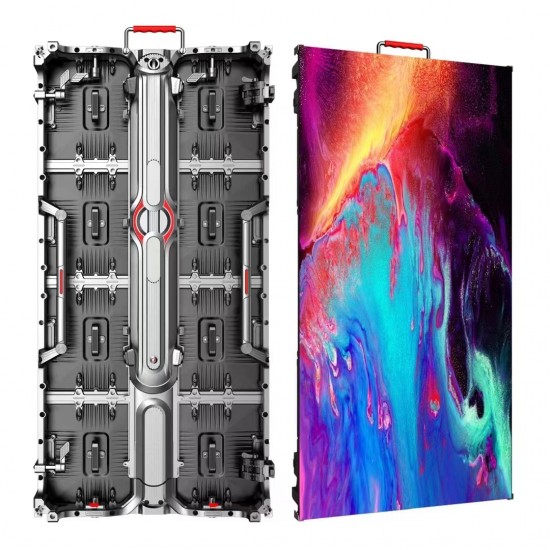

Jilian P3.91 Outdoor Concert Rental Stage LED Display Advertising Waterproof Video Wall Giant Screen

Description

Key attributes

D/C

Other

Package

SMD(1R1G1B)

Type

Other

Place of Origin

Guangdong, China

Brand Name

Jilian Guangcai

Cross Reference

Other

Color

full color

Supplier Type

Original manufacturer, ODM, Agency, Retailer, OEM, Other

Refresh rate

3840Hz

Certificate

CE ROHS FCC

Operating

(-25℃+50℃)

Viewing Angle

Horizontal >170 Vertical>120

Model Number

P2.604 P2.976 P3.91 P4.81

Module size

250X250 mm

Life span

100000hours

Box size

500*500mm/500*1000mm

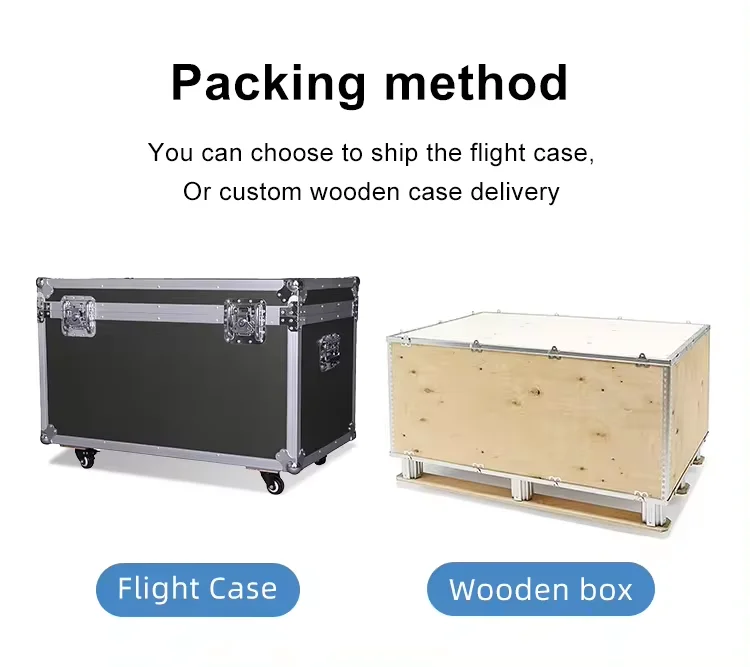

Packaging and delivery

Selling Units

Single item

Single package size

50X100X7.65 cm

Single gross weight

12.170 kg

Product Description

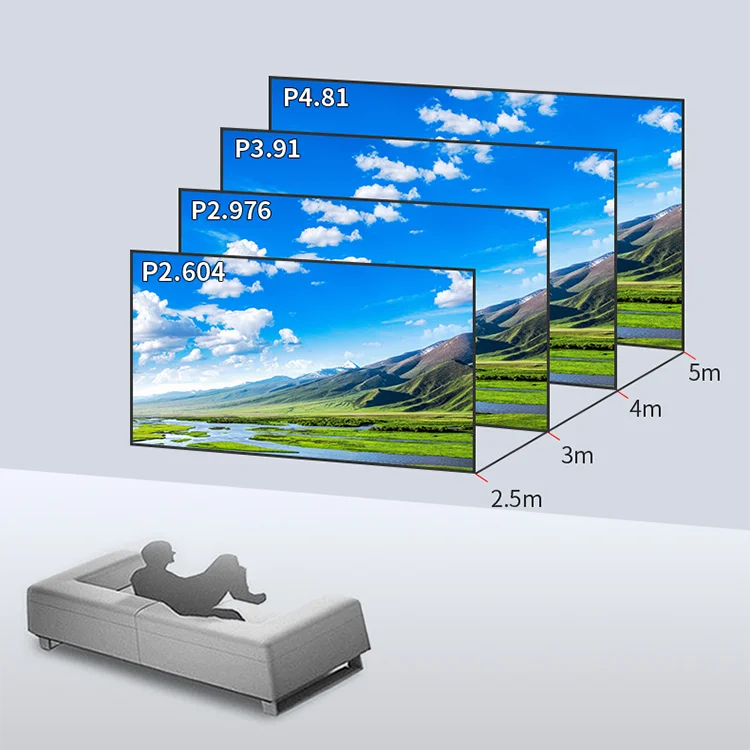

Viewing distance for this

The smaller the model, the clearer it becomes

Specification

Model	P2.604	P2.97	P3.91	P4.81
Pixel Pitch(mm)	2.604	2.97	3.91	4.81
Pixel Matrix Per Sq.m	147,456dots	112,896dots	65,536dots	43,264dots
LEDs package	SMD1515	SMD1515	SMD2121	SMD2121
Brightness (cd/㎡)	≥5,500cd/㎡	≥5,500cd/㎡	≥5,500cd/㎡	≥5,500cd/㎡
Scan	1/32	1/28	1/16	1/13
Module Dimension	250250mm /0.820.82ft	250250mm /0.820.82ft	250250mm /0.820.82ft	250250mm /0.820.82ft
Cabinet Dimension	50050077mm /500100077mm	50050077mm /500100077mm	50050077mm /500100077mm	50050077mm /500100077mm
Cabinet Resolution	192*192dots	168*168dots	128*128dots	104*104dots
Cabinet Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Cabinet Weight	7KG/13KG	7KG/13KG	7KG/13KG	7KG/13KG
Max. Power Consumption	800W	800W	800W	800W
Ave. Power Consumption	200-300W	200-300W	200-300W	200-300W
Service Access	Rear	Rear	Rear	Rear
Refresh Rate (HZ)	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Grey Scale (bit)	16	16	16	16
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°
Best Viewing Distance	2.6-26meters	2.97-29.7meters	3.91-39.1meters	4.81-48.1meters
IP Rate	IP65	IP65	IP65	IP65
Input Voltage (AC)	110V-240V,50/60HZ	110V-240V,50/60HZ	110V-240V, 50/60HZ	110V-240V,50/60HZ

Company Profile

FAQ

Q1: Are you a manufacturer or trading company?
A1: We are a Professional OEM/0DM manufacturer which has specialized in led display industry for 10 years.

Q2: What can you from us?
A2: LED modules, led screen, led display serie product.

Q3: How does your factory do regarding quality control?
A3:We focus on every detail, Our factory has gained IS09001,IS014001, CE, RoHS , FCC, CcC authentication.

Q4: What is your MOQ?
A4: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q5: How about your delivery time?
A5: Generally, it willtake 10 to 25 days after receiving your deposit payment. The specific delivery time depends on the
items and the quantity of your order.

O6: How about your Warranty Term?
A6: 3 year warranty. Structure design, installation problem, program the screen, how to use the screen.? don't worry, wehave professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineerwill alsohelp you get over any problems.
