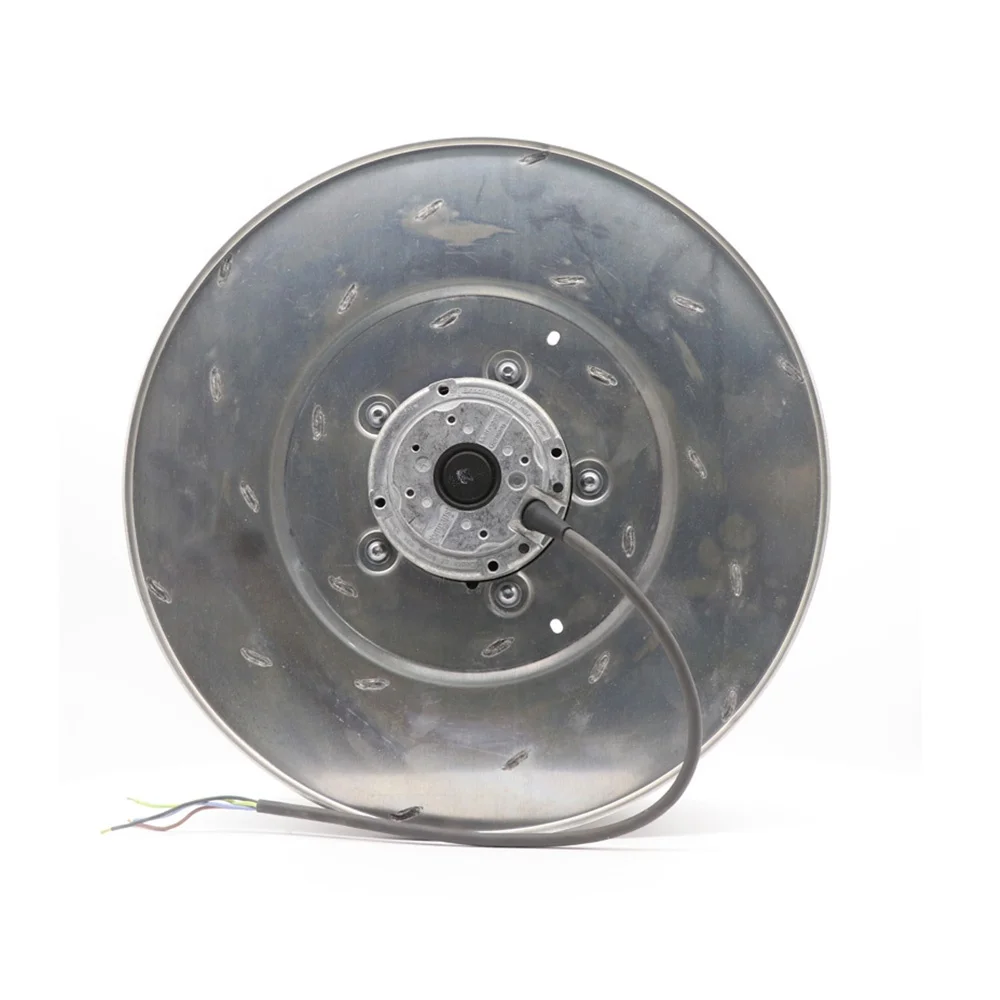

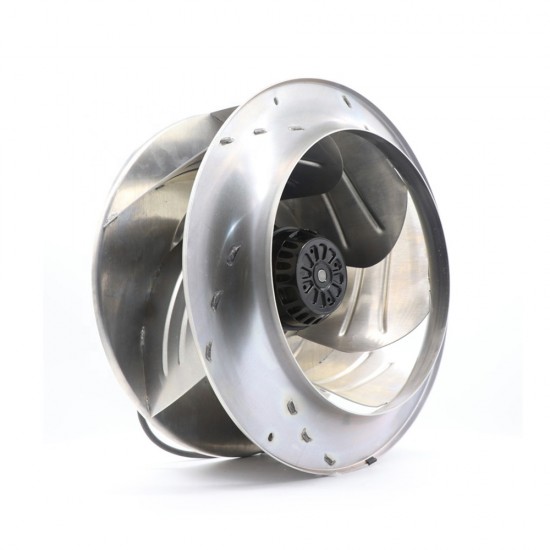

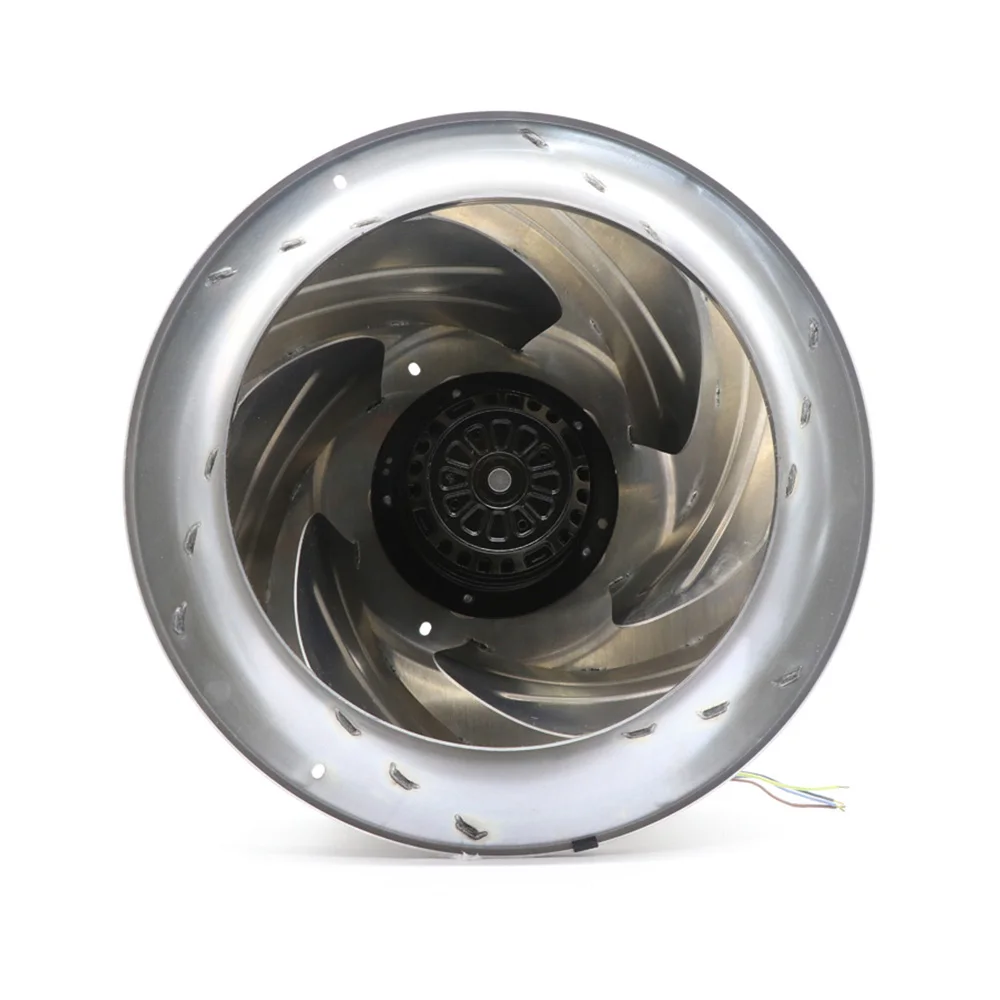

ebmpapst R4E355-AL02-05 230V AC 1.12A 355mm 245W 1000-2800m3/h 140-350Pa FFU Fan Filter Unit Air Purifier Centrifugal Fan

ebmpapst R4E355-AL02-05 230V AC 1.12A 355mm 245W 1000-2800m3/h 140-350Pa FFU Fan Filter Unit Air Purifier Centrifugal Fan

Description

High-Quality Construction: The ebmpapst R4E355-AL02-05 centrifugal fan features a robust metal blade material and a reliable ball bearing, ensuring durability and efficient operation in various applications.
Wide Industrial Applications: This fan is suitable for various industries, including hotels, garment shops, manufacturing plants, farms, and food & beverage factories, making it a versatile solution for diverse business needs.
Energy Efficiency: With a power consumption of 245W, this fan is an energy-efficient option for users, particularly for those looking to reduce their energy costs.
Reliable Performance: The fan operates at a speed of 1420(r/min) and has a flow rate of 1000-2800m3/h, ensuring effective ventilation and air circulation in various environments.
Comprehensive Support: The product comes with a 1-year warranty, online support, and customized support options (OEM and ODM), providing users with peace of mind and flexibility.

Key attributes

mounting

Free Standing

Voltage

230v

Blade Material

Metal

customized support

OEM, ODM

warranty

1 Year

After-sales Service Provided

Online support

model number

R4E355-AL02-05

place of origin

Germany

brand name

ebmpapst

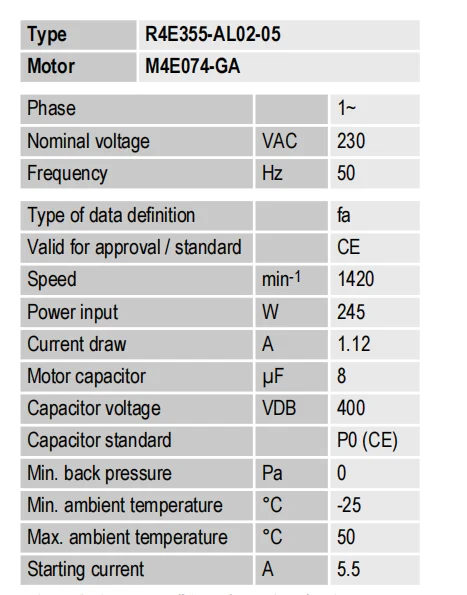

Nominal voltage

230V

Bearing Type

Ball Bearing

Power consumption

245W

Speed

1420(r/min)

current

1.12(A)

Frequency

50~60Hz

Capacitor voltage

400 VDB

Fan size

355mm

Max. ambient temperature

50°C

Packaging and delivery

Selling Units

Single item

Single package size

47X47X42 cm

Single gross weight

6.000 kg

ebmpapst R4E355-AL02-05 230V AC 1.12A 355mm 245W 1000-2800m3/h 140-350Pa FFU Fan Filter Unit Air Purifier Centrifugal Fan

item	value
Type	Centrifugal Fan
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Restaurant, Printing Shops, Construction works , Energy & Mining
Customized support	OEM
Electric Current Type	AC
Blade Material	Metal
Mounting	FREE STANDING
Place of Origin	Germany
Brand Name	ebmpapst
Model Number	R4E355-AL02-05
Voltage	230v
Certification	complete certification
Warranty	1 Year
After-sales Service Provided	Online support
Nominal voltage	230V
Bearing Type	Ball Bearing
Power consumption	245W
Speed	1420(r/min)
current	1.12(A)
Frequency	50~60Hz
Capacitor voltage	400 VDB
Fan size	355mm
Max. ambient temperature	50°C

A fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air.

1. Who are we?

Beijing Hengrui Hongsheng has been engaged in fan industry since 2006 and have become the most professional fan distributor in China. We have a warehouse of over 5000 ㎡，and more than 100,000 units products in stock.

2. Why choose us？

Excellent Experience
>15000 Customers
Decades of accumulation
Hundreds of successful cases

Professional Team
The core staff of Sales & Technical Department have more than 5 years of experience
Diversified Product Solutions
We can offer several product solutions for customers to choose
Quick Response
Reply within 10 minutes, 24 hours online
Adequate Stock
More than 20 brands，5000 models，100000 units in our warehouse
Perfect Service
Professional technician for pre-sale & after-sale support
