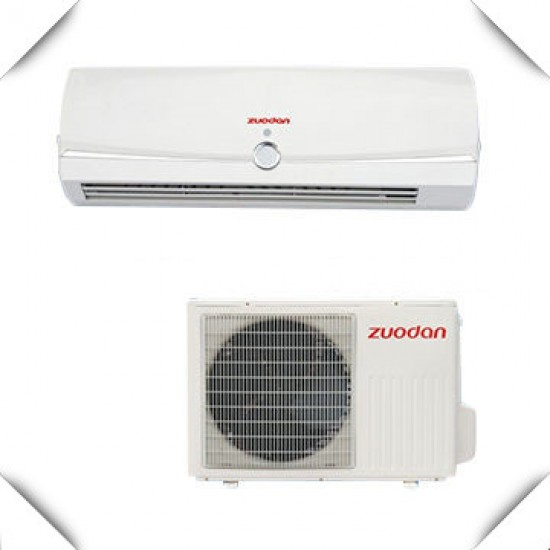

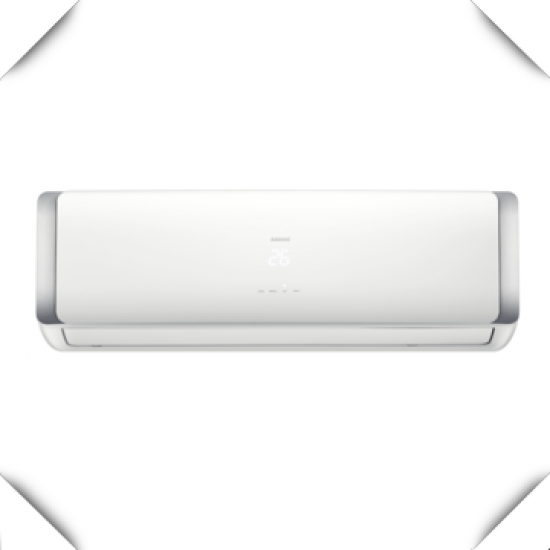

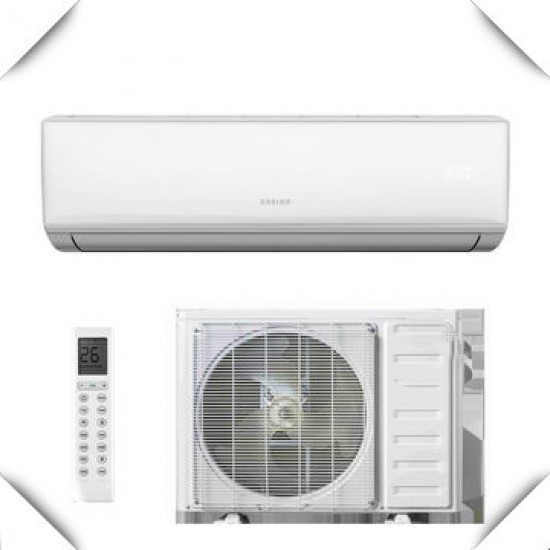

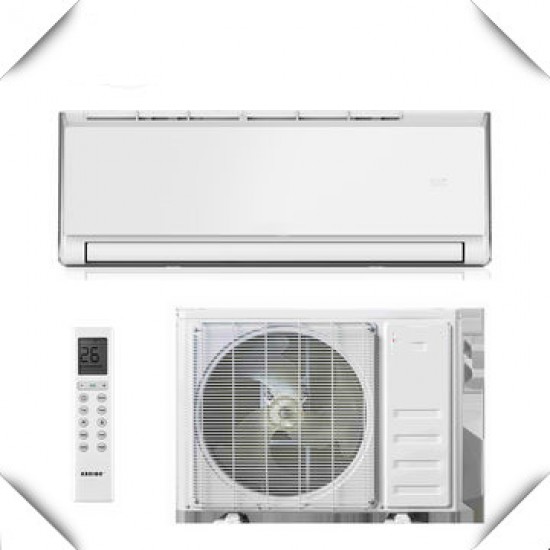

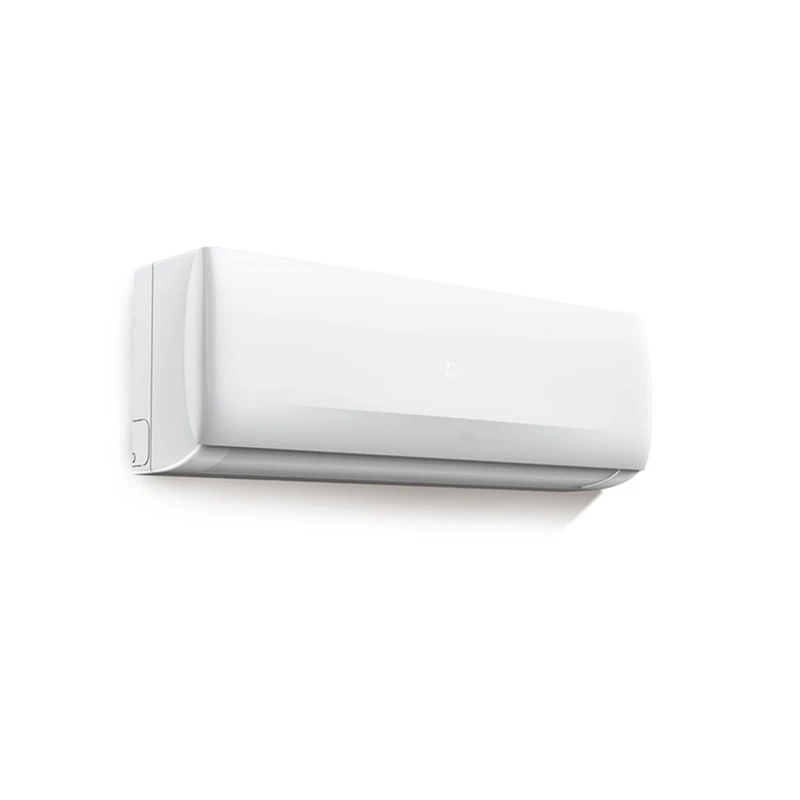

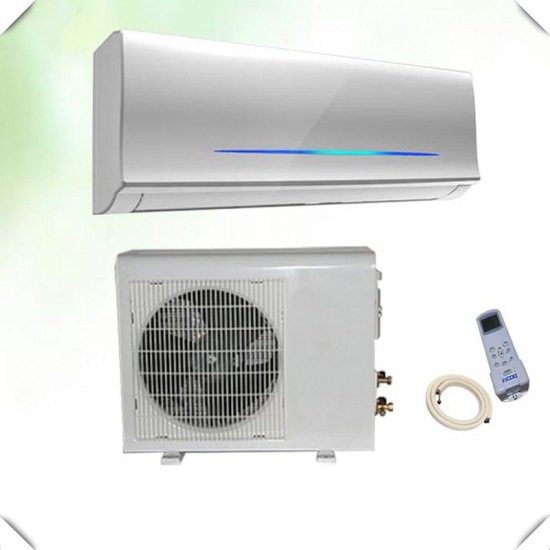

Split Air Conditioner 12000 BTU Wall Mounted Split Air Conditioner With Anti Dust Filter
Key attributes
remote control
Yes
capacity (btu)
8001-10000
recommended room size（square feet）
11
private mold
Yes
timer
Yes
cooling/heating
Cooling/Heating
fixed frequency/variable frequency
Fixed Frequency
power type
AC
application
Hotel, RV, Household
warranty
1 Year
app-controlled
No
power source
Electric
after-sales service provided
Free Spare Parts
eer
2-4
Voltage (V)
220
brand name
ktn
place of origin
Shandong, China
maximum airflow rate
450
power (w)
2640
model number
9K
Power Source
electrical
Certification1
CB
Color
WHITE
cooling capacity
9000BTU
Function
Cooling Only
Type
Wall-mounted
Refrigerant
R410a Environmental Protection Refrigerant
Product Name
Split Ac
Brand
ktn
Power supply
220-240V/1Ph/50Hz
Packaging and delivery
Packaging Details
CARTON
Port of dispatch
ANY PORT OF CHINA
Selling Units
Single item
Single package size
77X32X48 cm
Single gross weight
34.000 kg
Supply capacity
Supply Ability
100000 pieces per Month
Show more
Product Description
Specification
Type | Cooling only | ||||

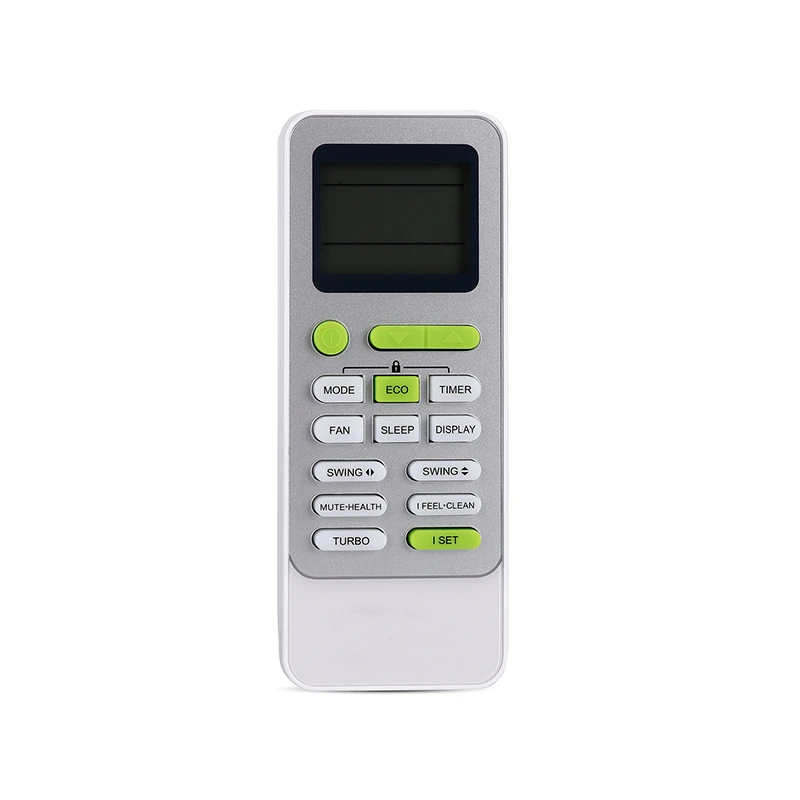

Control type | Remote | ||||
Power supply | Ph-V-Hz | 1Ph-220-240V~50Hz | |||
Voltage Range | V | 160~264 | |||
Cooling | Capacity | Btu/h | 9000 | ||
Capacity | W | 2640 | |||
Rated power Input | W | 850 | |||
Rated current | A | 3.9 | |||
EER | W/W | 3.10 | |||
Max power Input | W | 1250 | |||
Max current | A | 6.8 | |||
Moisture removal | Liters/h | 1.0 | |||
Indoor noise level | dB(A) | 40 | |||
Outdoor noise level | dB(A) | 49 | |||
Compressor | Type | Rotary | |||
Expansion device | Capillary | ||||
Indoor air flow (Hi/Mi/Lo) | m3/h | 450 | |||

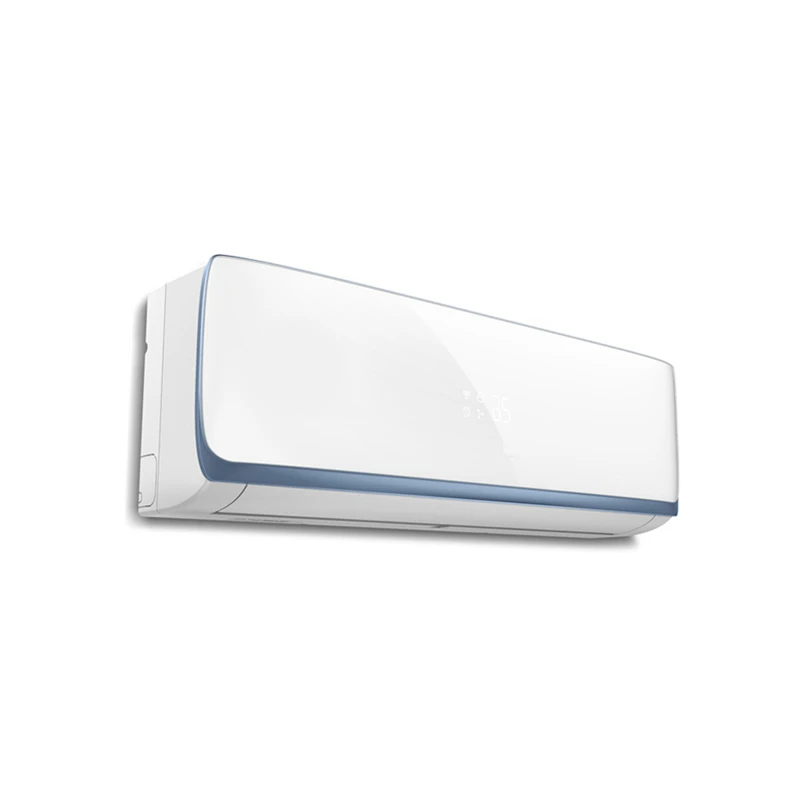

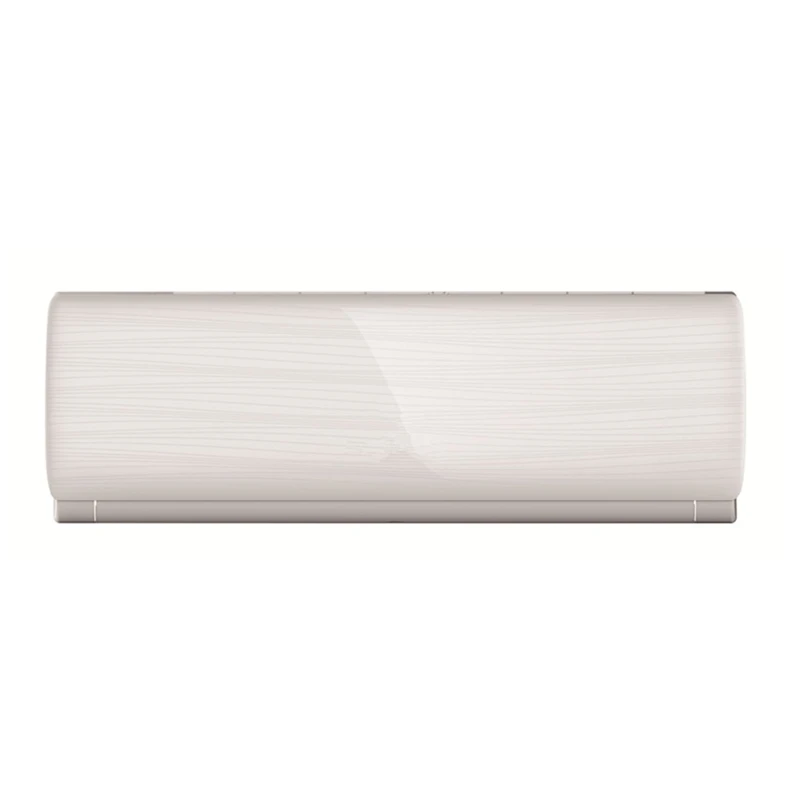

Indoor unit | Dimension(W*D*H) | mm | 698×255×190 | ||
Packing (W*D*H) | mm | 764×325×257 | |||
Net/Gross weight | Kg | 6.5/8.5 | |||

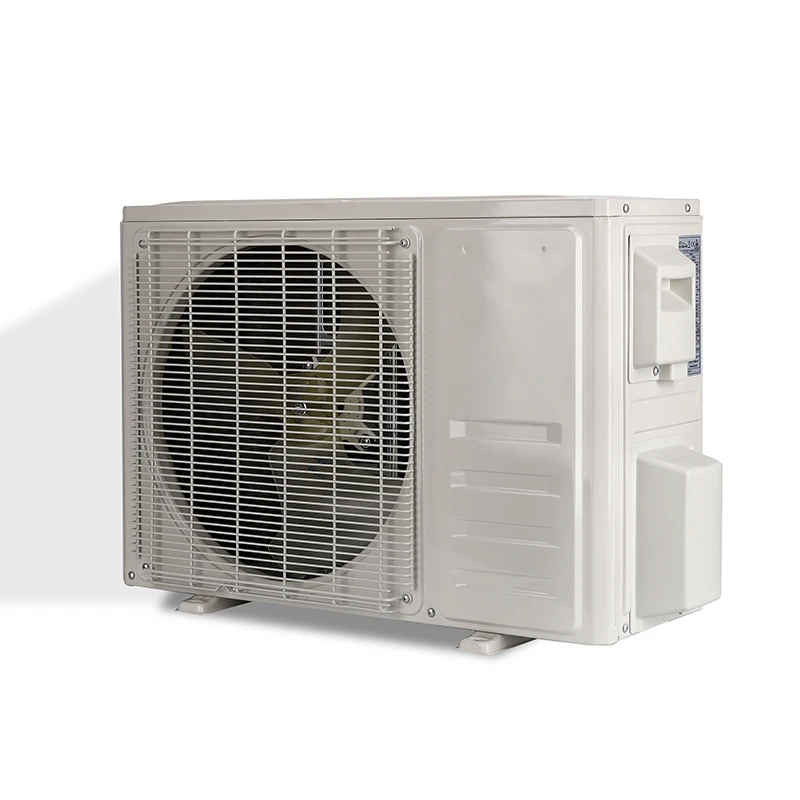

Outdoor unit | Dimension(W*D*H) | mm | 722×276×459 | ||
Packing (W*D*H) | mm | 765×310×478 | |||
Net/Gross weight | Kg | 22.5/25.5 | |||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | φ6(1/4")/φ9.52(3/8") | ||
Max. refrigerant pipe lengt | m | 15 | |||
Max. difference in level | m | 5 | |||
Pressure | High(DP) | MPa | 4.5 | ||
Low(SP) | MPa | 1.9 | |||
Refrigerant | R410A | ||||
Ambient temperature | ℃ | -7~43 | |||
Suitable area | m2 | 9~12 | |||
Connecting Wiring | Size x Core number | 3×1.0mm2 | |||
Power supply cord | 1.0mm2 | ||||
Qty 40'HQ | 372 | ||||
